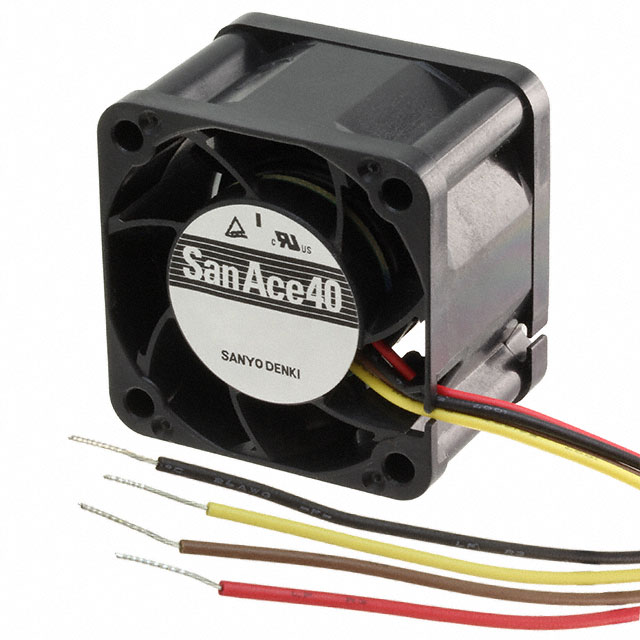

9GA0412P3K011

Active

Sanyo Denki America Inc.

FAN AXIAL 40X28MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

9GA0412P3K011

Active

Sanyo Denki America Inc.

FAN AXIAL 40X28MM 12VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GA0412P3K011

Air Flow	28.6 CFM
Air Flow	0.801 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	920 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	61 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	11.04 W
RPM	22000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	3.21 in H2O
Static Pressure	800 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.117 lb
Weight	53.07 g
Width [y]	28 mm

9GA0412 Series

Part	Width [x]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Material - Blade	RPM	Static Pressure	Static Pressure	Approval Agency	Termination	Features	Lifetime @ Temp.	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Fan Type	Noise	Weight	Weight	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Lifetime @ Temp.	Air Flow	Air Flow	Power (Watts)	Width [y]
Sanyo Denki America Inc. 9GA0412G7D001	15 mm	40 mm	Square	40 mm	Plastic	13100 RPM	191.8 Pa	0.77 in H2O	CSA TUV UL	3 Wire Leads	Locked Rotor Sensor	Varies Based on Temperature	Ball	7 V	13.8 VDC	Plastic	Tubeaxial	42 dB	28.12 g	0.062 lb	0.17 A	-20 °C	70 °C	-20 C	70 °C	12 VDC
Sanyo Denki America Inc. 9GA0412J3011		40 mm	Square	40 mm	Plastic	18000 RPM	535 Pa	2.15 in H2O	CSA TUV UL	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)		Ball	10.8 VDC	13.2 VDC	Plastic	Tubeaxial	54 dB	53.07 g	0.117 lb	490 mA	-20 °C	70 °C	-20 C	70 °C	12 VDC	40000 Hrs	0.664 m³/min	23.7 CFM	5.88 W	28 mm
Sanyo Denki America Inc. 9GA0412P3M01		40 mm	Square	40 mm	Plastic	12500 RPM	258 Pa	1.04 in H2O	CSA TUV UL	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)		Ball	10.8 VDC	13.2 VDC	Plastic	Tubeaxial	47 dB	53.07 g	0.117 lb	0.21 A	-20 °C	70 °C	-20 C	70 °C	12 VDC	40000 Hrs	0.454 m³/min	16.2 CFM	2.52 W	28 mm
Sanyo Denki America Inc. 9GA0412H302		40 mm	Square	40 mm	Plastic	14500 RPM	346.2 Pa	1.39 in H2O	CSA TUV UL	2 Wire Leads			Ball	10.8 VDC	13.2 VDC	Plastic	Tubeaxial	50 dB(A)	53.07 g	0.117 lb	0.28 A	-20 °C	70 °C	-20 C	70 °C	12 VDC	40000 Hrs	0.535 mł/min	19.1 CFM	3.36 W	28 mm
Sanyo Denki America Inc. 9GA0412P3G011		40 mm	Square	40 mm	Plastic	16500 RPM	450.8 Pa	1.81 in H2O	CSA TUV UL	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)		Ball	10.8 VDC	13.2 VDC	Plastic	Tubeaxial	53 dB	53.07 g	0.117 lb	390 mA	-20 °C	70 °C	-20 C	70 °C	12 VDC	40000 Hrs	0.602 m³/min	21.5 CFM		28 mm
Sanyo Denki America Inc. 9GA0412H3D011		40 mm	Square	40 mm	Plastic	14500 RPM	346.2 Pa	1.39 in H2O	CSA TUV UL	3 Wire Leads	Locked Rotor Sensor		Ball	10.8 VDC	13.2 VDC	Plastic	Tubeaxial	50 dB(A)	53.07 g	0.117 lb	0.28 A	-20 °C	70 °C	-20 C	70 °C	12 VDC	40000 Hrs	0.535 mł/min	19.1 CFM	3.36 W	28 mm
Sanyo Denki America Inc. 9GA0412H6001		40 mm	Square	40 mm	Plastic	12400 RPM	191.8 Pa	0.77 in H2O	CSA TUV UL	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)		Ball	10.2 VDC	13.8 VDC	Plastic	Tubeaxial	40 dB(A)	35.38 g	0.078 lb	140 mA	-20 °C	70 °C	-20 C	70 °C	12 VDC		0.328 mł/min	11.7 CFM	1.68 W	20 mm
Sanyo Denki America Inc. 9GA0412P6F001		40 mm	Square	40 mm	Plastic	8000 RPM	79.5 Pa	0.319 in H2O	CSA TUV UL	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)		Ball	10.2 VDC	13.8 VDC	Plastic	Tubeaxial	28 dB	34.93 g	0.077 lb		-20 °C	70 °C	-20 C	70 °C	12 VDC		0.207 mł/min	7.4 CFM		20 mm
Sanyo Denki America Inc. 9GA0412P3K011		40 mm	Square	40 mm	Plastic	22000 RPM	800 Pa	3.21 in H2O	CSA TUV UL	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)		Ball	10.8 VDC	13.2 VDC	Plastic	Tubeaxial	61 dB(A)	53.07 g	0.117 lb	920 mA	-20 °C	70 °C	-20 C	70 °C	12 VDC	40000 Hrs	0.801 m³/min	28.6 CFM	11.04 W	28 mm
Sanyo Denki America Inc. 9GA0412P6G023		40 mm	Square	40 mm	Plastic	16000 RPM				4 Position Rectangular Connector	Locked Rotor Protection PWM Control Speed Sensor (Tach)		Ball	10.2 VDC	13.8 VDC	Plastic	Tubeaxial	47 dB	35.38 g	0.078 lb	0.23 A	-20 °C	70 °C	-20 C	70 °C	12 VDC					20 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.45
		10	$ 14.67
		25	$ 14.01
		50	$ 13.54
		126	$ 12.93
		252	$ 12.49
		504	$ 12.06

Description

General part information

9GA0412 Series

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 28.6 CFM (0.801m³/min) 4 Wire Leads
