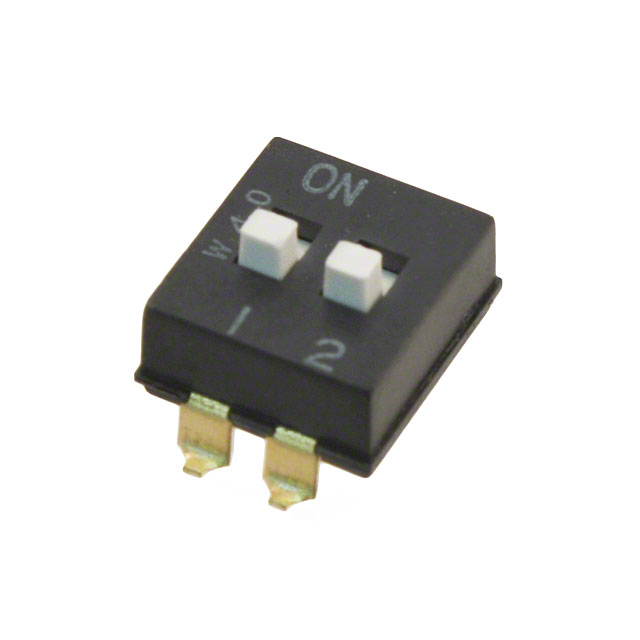

A6SN-2104

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A6SN-2104

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6SN-2104

Actuator Level	Raised
Actuator Type	Slide (Standard)
Circuit	SPST
Current Rating (Amps)	25 mA
Electrical Life	1000 Cycles
Height Above Board	5.45 mm
Height Above Board [z]	0.214 in
Length [x]	7 mm
Length [x]	0.276 in
Mounting Type	Surface Mount
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	True

A6SN Series

Part	Mounting Type	Height Above Board	Height Above Board	Electrical Life	Termination Style	Circuit	Pitch [x]	Pitch	Pitch [x]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Actuator Level	Voltage Rating	Actuator Type	Height Above Board [z]	Number of Positions	Features	Length [x]	Length [x]
Omron Electronics Inc-EMC Div A6SN-3101	Surface Mount	0.175 in	4.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C	9.55 mm	0.376 "	Flush Recessed	24 VDC	Slide (Standard)
Omron Electronics Inc-EMC Div A6SN-8104	Surface Mount		5.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C	22.26 mm	0.876 "	Raised	24 VDC	Slide (Standard)	0.214 in	8
Omron Electronics Inc-EMC Div A6SN-7102-P	Surface Mount	0.175 in	4.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C	19.71 mm		Flush Recessed	24 VDC	Slide (Standard)		7	Tape Seal	0.776 in
Omron Electronics Inc-EMC Div A6SN-5104-P	Surface Mount		5.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C			Raised	24 VDC	Slide (Standard)	0.214 in			0.576 "	14.63 mm
Omron Electronics Inc-EMC Div A6SN-1101	Surface Mount	0.175 in	4.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C			Flush Recessed	24 VDC	Slide (Standard)		1		0.176 in	4.48 mm
Omron Electronics Inc-EMC Div A6SN-0104	Surface Mount		5.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C			Raised	24 VDC	Slide (Standard)	0.214 in	10		1.076 in	27.34 mm
Omron Electronics Inc-EMC Div A6SN-5101	Surface Mount	0.175 in	4.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C			Flush Recessed	24 VDC	Slide (Standard)				0.576 "	14.63 mm
Omron Electronics Inc-EMC Div A6SN-2104	Surface Mount		5.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C			Raised	24 VDC	Slide (Standard)	0.214 in	2		0.276 in	7 mm
Omron Electronics Inc-EMC Div A6SN-5104	Surface Mount		5.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C			Raised	24 VDC	Slide (Standard)	0.214 in			0.576 "	14.63 mm
Omron Electronics Inc-EMC Div A6SN-6102-P	Surface Mount	0.175 in	4.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C	17.17 mm	0.676 "	Flush Recessed	24 VDC	Slide (Standard)		6	Tape Seal
