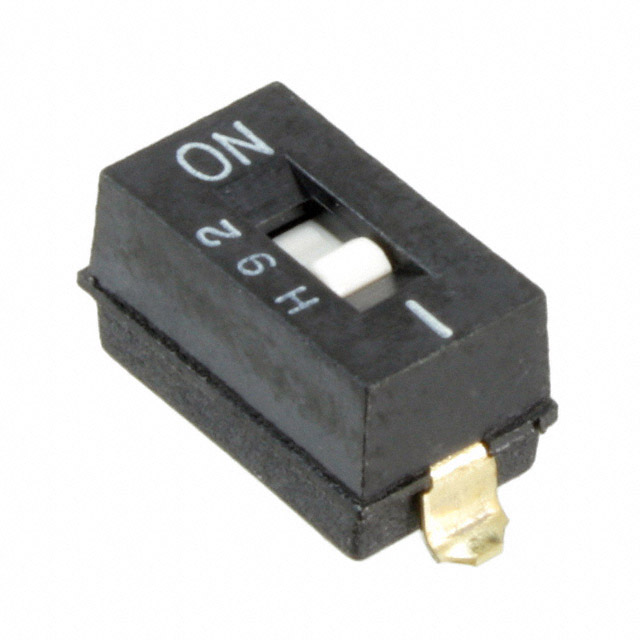

A6SN-1101

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A6SN-1101

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6SN-1101

Actuator Level	Flush, Recessed
Actuator Type	Slide (Standard)
Circuit	SPST
Current Rating (Amps)	25 mA
Electrical Life	1000 Cycles
Height Above Board	0.175 in
Height Above Board	4.45 mm
Length [x]	4.48 mm
Length [x]	0.176 in
Mounting Type	Surface Mount
Number of Positions	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	True

A6SN Series

Part	Mounting Type	Height Above Board	Height Above Board	Electrical Life	Termination Style	Circuit	Pitch [x]	Pitch	Pitch [x]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Actuator Level	Voltage Rating	Actuator Type	Height Above Board [z]	Number of Positions	Features	Length [x]	Length [x]
Omron Electronics Inc-EMC Div A6SN-3101	Surface Mount	0.175 in	4.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C	9.55 mm	0.376 "	Flush Recessed	24 VDC	Slide (Standard)
Omron Electronics Inc-EMC Div A6SN-8104	Surface Mount		5.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C	22.26 mm	0.876 "	Raised	24 VDC	Slide (Standard)	0.214 in	8
Omron Electronics Inc-EMC Div A6SN-7102-P	Surface Mount	0.175 in	4.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C	19.71 mm		Flush Recessed	24 VDC	Slide (Standard)		7	Tape Seal	0.776 in
Omron Electronics Inc-EMC Div A6SN-5104-P	Surface Mount		5.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C			Raised	24 VDC	Slide (Standard)	0.214 in			0.576 "	14.63 mm
Omron Electronics Inc-EMC Div A6SN-1101	Surface Mount	0.175 in	4.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C			Flush Recessed	24 VDC	Slide (Standard)		1		0.176 in	4.48 mm
Omron Electronics Inc-EMC Div A6SN-0104	Surface Mount		5.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C			Raised	24 VDC	Slide (Standard)	0.214 in	10		1.076 in	27.34 mm
Omron Electronics Inc-EMC Div A6SN-5101	Surface Mount	0.175 in	4.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C			Flush Recessed	24 VDC	Slide (Standard)				0.576 "	14.63 mm
Omron Electronics Inc-EMC Div A6SN-2104	Surface Mount		5.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C			Raised	24 VDC	Slide (Standard)	0.214 in	2		0.276 in	7 mm
Omron Electronics Inc-EMC Div A6SN-5104	Surface Mount		5.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C			Raised	24 VDC	Slide (Standard)	0.214 in			0.576 "	14.63 mm
Omron Electronics Inc-EMC Div A6SN-6102-P	Surface Mount	0.175 in	4.45 mm	1000 Cycles	Gull Wing	SPST	0.1 in	Full	2.54 mm	25 mA	-30 ░C	85 °C	17.17 mm	0.676 "	Flush Recessed	24 VDC	Slide (Standard)		6	Tape Seal
