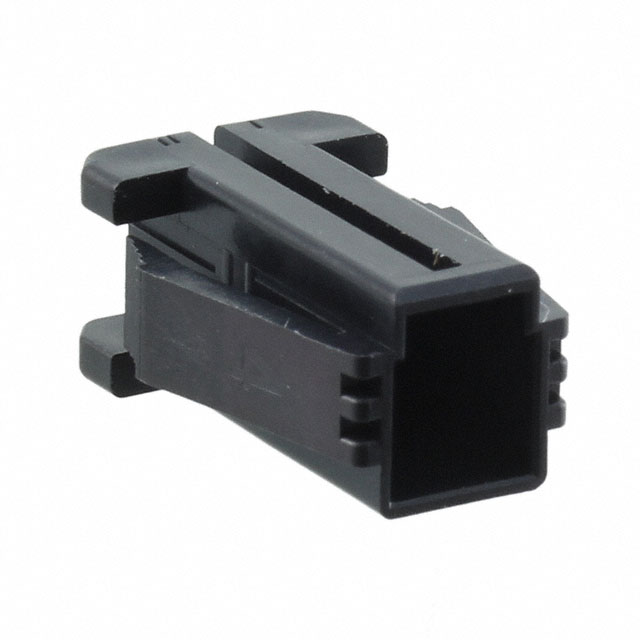

DF62P-4EP-2.2C

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 4POS 2.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF62 Series Brochure +1

DF62P-4EP-2.2C

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 4POS 2.20MM

Deep-Dive with AI

DocumentsDatasheet DF62 Series Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF62P-4EP-2.2C

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-35 °C
Pitch [x]	0.087 in
Pitch [x]	2.2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

DF62P Series

Part	Number of Rows	Contact Type	Note	Row Spacing	Row Spacing	Connector Type	Pitch [x]	Pitch [x]	Color	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Fastening Type	Contact Termination
Hirose Electric USA, Inc. DF62P-6EP-2.2C(10)	2	Male Pin	Contacts Not Included	2 mm	0.079 in	Plug	0.087 in	2.2 mm	White	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	6	Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-24EP-2.2C(10)	5	Male Pin	Contacts Not Included	2 mm	0.079 in	Plug	0.087 in	2.2 mm	White	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	24	Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-13EP-2.2C(10)		Male Pin	Contacts Not Included	2 mm	0.079 in	Plug	0.087 in	2.2 mm	White	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	13	Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-4EP-2.2C	2	Male Pin	Contacts Not Included	2 mm	0.079 in	Plug	0.087 in	2.2 mm	Black	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	4	Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-2EP-2.2C(10)	1	Male Pin	Contacts Not Included			Plug	0.087 in	2.2 mm	White	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2	Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-2EP-2.2C(18)	1	Male Pin	Contacts Not Included			Plug	0.087 in	2.2 mm	Red	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2	Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-2EP-2.2C	1	Male Pin	Contacts Not Included			Plug	0.087 in	2.2 mm	Black	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2	Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-3EP-2.2C	2	Male Pin	Contacts Not Included	2 mm	0.079 in	Plug	0.087 in	2.2 mm	Black	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C		Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-5EP-2.2C	2	Male Pin	Contacts Not Included	2 mm	0.079 in	Plug	0.087 in	2.2 mm	Black	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C		Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-4EP-2.2C(18)	2	Male Pin	Contacts Not Included	2 mm	0.079 in	Plug	0.087 in	2.2 mm	Red	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	4	Latch Holder	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.48
		10	$ 0.41
		25	$ 0.38
		50	$ 0.37
		100	$ 0.35
		300	$ 0.32
		500	$ 0.31
		1000	$ 0.30
		2500	$ 0.28

Description

General part information

DF62P Series

4 Rectangular Connectors - Housings Plug Black 0.087" (2.20mm)

Documents

Technical documentation and resources

Datasheet

DF62 Series Brochure

Datasheet

DF62P-4EP-2.2C Spec

Datasheet
