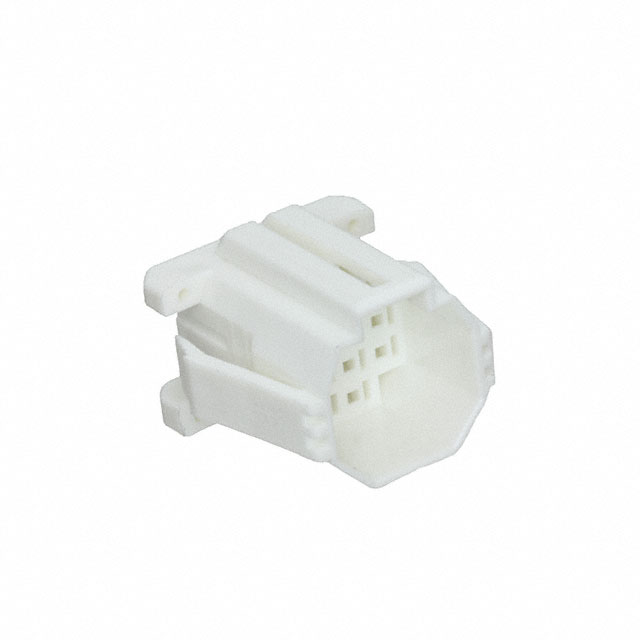

DF62P-13EP-2.2C(10)

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 13POS 2.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF62P-13EP-2.2C(10) Spec Datasheet

DF62P-13EP-2.2C(10)

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 13POS 2.20MM

Deep-Dive with AI

DocumentsDF62P-13EP-2.2C(10) Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF62P-13EP-2.2C(10)

Color	White
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT)
Note	Contacts Not Included
Number of Positions	13
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-35 °C
Pitch [x]	0.087 in
Pitch [x]	2.2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

DF62P Series

Part	Number of Rows	Contact Type	Note	Row Spacing	Row Spacing	Connector Type	Pitch [x]	Pitch [x]	Color	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Fastening Type	Contact Termination
Hirose Electric USA, Inc. DF62P-6EP-2.2C(10)	2	Male Pin	Contacts Not Included	2 mm	0.079 in	Plug	0.087 in	2.2 mm	White	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	6	Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-24EP-2.2C(10)	5	Male Pin	Contacts Not Included	2 mm	0.079 in	Plug	0.087 in	2.2 mm	White	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	24	Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-13EP-2.2C(10)		Male Pin	Contacts Not Included	2 mm	0.079 in	Plug	0.087 in	2.2 mm	White	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	13	Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-4EP-2.2C	2	Male Pin	Contacts Not Included	2 mm	0.079 in	Plug	0.087 in	2.2 mm	Black	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	4	Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-2EP-2.2C(10)	1	Male Pin	Contacts Not Included			Plug	0.087 in	2.2 mm	White	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2	Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-2EP-2.2C(18)	1	Male Pin	Contacts Not Included			Plug	0.087 in	2.2 mm	Red	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2	Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-2EP-2.2C	1	Male Pin	Contacts Not Included			Plug	0.087 in	2.2 mm	Black	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2	Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-3EP-2.2C	2	Male Pin	Contacts Not Included	2 mm	0.079 in	Plug	0.087 in	2.2 mm	Black	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C		Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-5EP-2.2C	2	Male Pin	Contacts Not Included	2 mm	0.079 in	Plug	0.087 in	2.2 mm	Black	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C		Latch Holder	Crimp
Hirose Electric USA, Inc. DF62P-4EP-2.2C(18)	2	Male Pin	Contacts Not Included	2 mm	0.079 in	Plug	0.087 in	2.2 mm	Red	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	4	Latch Holder	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.55
		10	$ 0.47
		25	$ 0.43
		50	$ 0.41
		100	$ 0.39
		300	$ 0.36
		500	$ 0.34
		1000	$ 0.30

Description

General part information

DF62P Series

13 Rectangular Connectors - Housings Plug White 0.087" (2.20mm)

Documents

Technical documentation and resources

DF62P-13EP-2.2C(10) Spec

Datasheet
