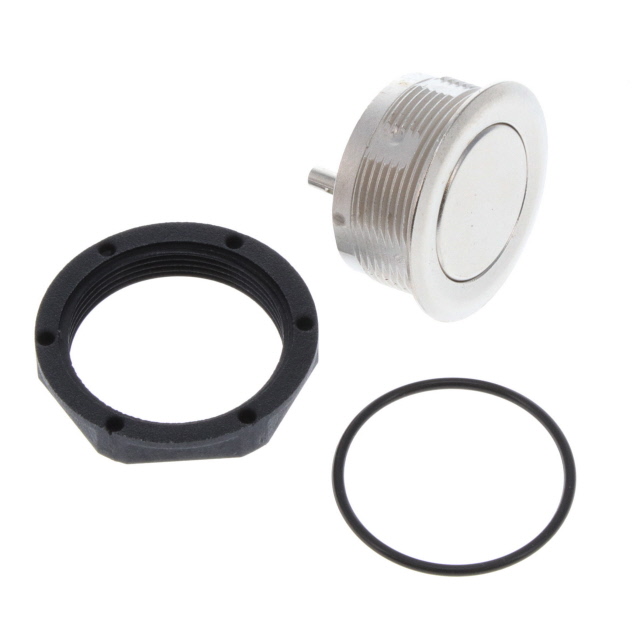

1241.2807

Active

SCHURTER Inc.

SWITCH: VANDAL RESISTANT; POS: 2; SPST-NO; 0.125A/48VDC; IP67

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH: VANDAL RESISTANT; POS: 2; SPST-NO; 0.125A/48VDC; IP67

Technical Specifications

Parameters and characteristics for this part

Specification	1241.2807

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	125 mA
Electrical Life	1000000 Cycles
Features	Tactile Feedback
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	Off-Mom
Termination Style	Connector
Type	Anti-Vandal
Voltage Rating - DC	48 V

Pushbutton Switches MCS 19 Metallic Ag

Part	Termination Style	Mounting Type	Panel Cutout Dimensions [diameter]	Mechanical Life	Type	Current Rating (Amps)	Color - Actuator/Cap	Voltage Rating - DC	Circuit	Features	Ingress Protection	Switch Function	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Actuator Marking
SCHURTER Inc. 1241.2807	Connector	Panel Mount Front	19 mm	1000000 Cycles	Anti-Vandal	125 mA	Silver	48 V	SPST-NO	Tactile Feedback	IP65 - Dust Tight Water Resistant	Off-Mom	Button Flush Round	-20 C	60 °C	1000000 Cycles	No Marking
SCHURTER Inc. 1241.2821	Solder Lug	Panel Mount Front	19 mm	1000000 Cycles	Anti-Vandal	125 mA	Silver	48 V	SPST-NO	Tactile Feedback	IP65 - Dust Tight Water Resistant	Off-Mom	Button Flush Round	-25 °C	60 °C	1000000 Cycles	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.51
TME	N/A	100	$ 13.00

General part information

Pushbutton Switches MCS 19 Metallic Ag
