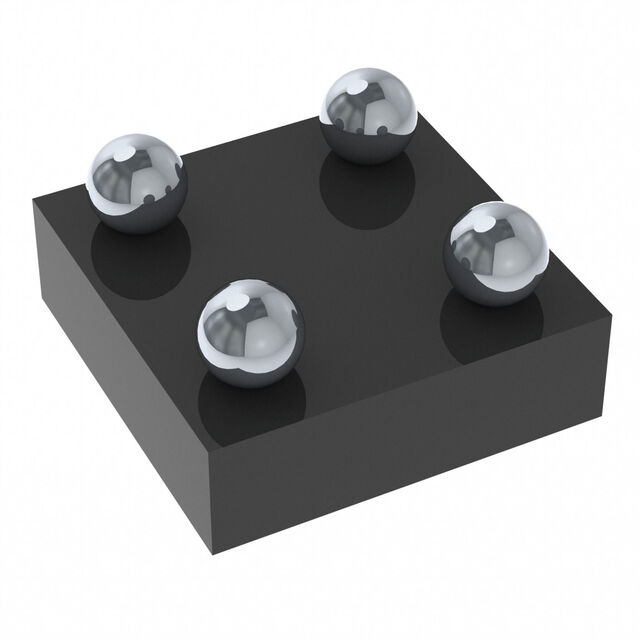

AP22913CN4-7-36

Active

Diodes Inc

IC PWR SWITCH P-CH X1-WLB0909-4

Search across all available documentation for this part.

Active

Diodes Inc

IC PWR SWITCH P-CH X1-WLB0909-4

Technical Specifications

Parameters and characteristics for this part

Specification	AP22913CN4-7-36

Current - Output (Max) [Max]	2 A
Fault Protection	Reverse Current, UVLO
Features	Slew Rate Controlled, Load Discharge
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	P-Channel
Package / Case	WLBGA, 4-XFBGA
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	54 mOhm
Supplier Device Package	X1-WLB0909-4
Switch Type	General Purpose
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	1.4 V
Voltage - Supply (Vcc/Vdd)	False

Part	Type	Supplied Contents	Contents	Function	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - Input:Output [custom]	Fault Protection	Switch Type	Input Type	Interface	Rds On (Typ)	Output Type	Supplier Device Package	Mounting Type	Package / Case	Current - Output (Max) [Max]	Output Configuration	Number of Outputs	Voltage - Load [Max]	Voltage - Load [Min]	Features
Diodes Inc AP22913CN4-EVM	Power Management	Board(s)	Board(s)	Power Distribution Switch (Load Switch)	AP22913
Diodes Inc AP22913CN4-7-36						85 °C	-40 °C	1:1	Reverse Current UVLO	General Purpose	Non-Inverting	On/Off	54 mOhm	P-Channel	X1-WLB0909-4	Surface Mount	4-XFBGA WLBGA	2 A	High Side	1	5.5 V	1.4 V	Load Discharge Slew Rate Controlled
Diodes Inc AP22913W6-EVM	Power Management	Board(s)	Board(s)	Power Distribution Switch (Load Switch)	AP22913
Diodes Inc AP22913CN4-7						85 °C	-40 °C	1:1	Reverse Current UVLO	General Purpose	Non-Inverting	On/Off	54 mOhm	P-Channel	X1-WLB0909-4	Surface Mount	4-XFBGA WLBGA	2 A	High Side	1	5.5 V	1.4 V	Load Discharge Slew Rate Controlled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Switch/Driver 1:1 P-Channel 2A X1-WLB0909-4
