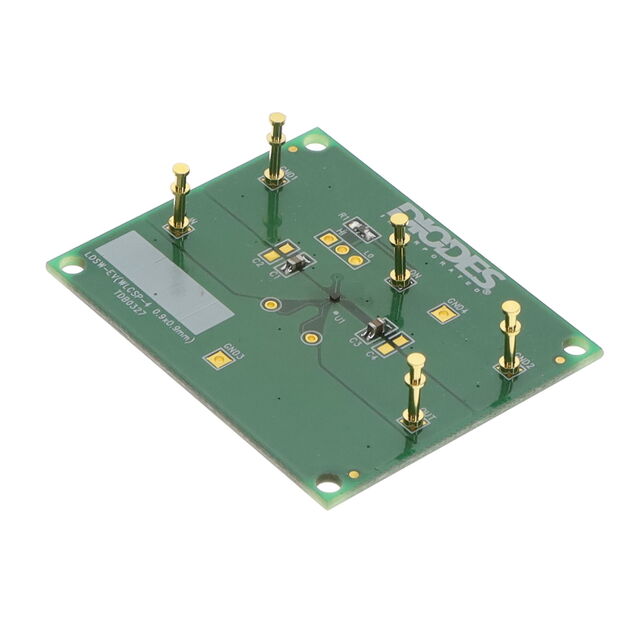

AP22913CN4-EVM

Active

Diodes Inc

EVAL BOARD FOR AP22913

Search across all available documentation for this part.

Active

Diodes Inc

EVAL BOARD FOR AP22913

Technical Specifications

Parameters and characteristics for this part

Specification	AP22913CN4-EVM

Contents	Board(s)
Function	Power Distribution Switch (Load Switch)
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	AP22913

Part	Type	Supplied Contents	Contents	Function	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - Input:Output [custom]	Fault Protection	Switch Type	Input Type	Interface	Rds On (Typ)	Output Type	Supplier Device Package	Mounting Type	Package / Case	Current - Output (Max) [Max]	Output Configuration	Number of Outputs	Voltage - Load [Max]	Voltage - Load [Min]	Features
Diodes Inc AP22913CN4-EVM	Power Management	Board(s)	Board(s)	Power Distribution Switch (Load Switch)	AP22913
Diodes Inc AP22913CN4-7-36						85 °C	-40 °C	1:1	Reverse Current UVLO	General Purpose	Non-Inverting	On/Off	54 mOhm	P-Channel	X1-WLB0909-4	Surface Mount	4-XFBGA WLBGA	2 A	High Side	1	5.5 V	1.4 V	Load Discharge Slew Rate Controlled
Diodes Inc AP22913W6-EVM	Power Management	Board(s)	Board(s)	Power Distribution Switch (Load Switch)	AP22913
Diodes Inc AP22913CN4-7						85 °C	-40 °C	1:1	Reverse Current UVLO	General Purpose	Non-Inverting	On/Off	54 mOhm	P-Channel	X1-WLB0909-4	Surface Mount	4-XFBGA WLBGA	2 A	High Side	1	5.5 V	1.4 V	Load Discharge Slew Rate Controlled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 29.70

General part information

AP22913 - Power Distribution Switch (Load Switch) Power Management Evaluation Board
