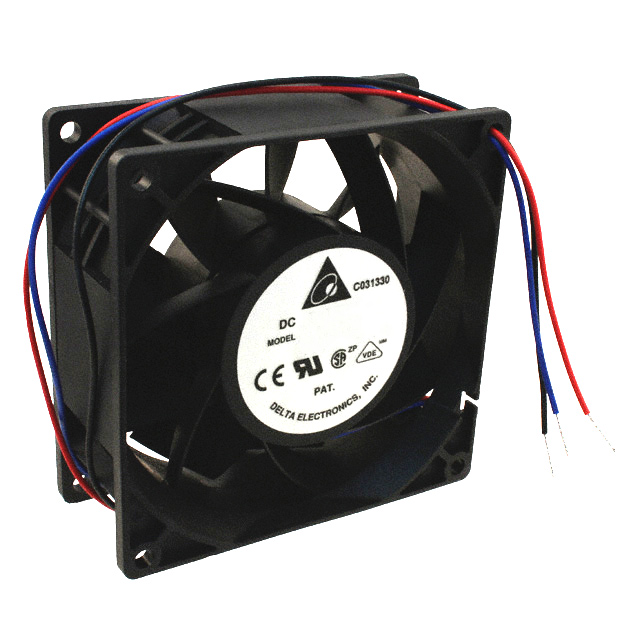

PFB0924DHE-R00

Active

Delta Electronics

FAN AXIAL 92X38MM 24VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 92X38MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Air Flow	Air Flow	Weight	Weight	Fan Type	Bearing Type	Static Pressure	Static Pressure	Material - Frame	Termination	Width [y]	Voltage Range [Max]	Voltage Range [Min]	RPM	Lifetime @ Temp.	Approval Agency	Noise	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Current Rating (Amps)	Material - Blade	Voltage - Rated	Ingress Protection	Features
Delta Electronics PFB0924DHE	4.9 mł/min	175 CFM	0.553 lb	250.84 g	Tubeaxial	Ball	453.1 Pa	1.819 in H2O	Plastic	2 Wire Leads	38 mm	26.4 VDC	14 VDC	8000 RPM	50000 Hrs	CE CSA UL VDE	66.5 dB(A)	34.8 W	-10 °C	-10 °C	60 °C	60 °C	1.45 A	Plastic	24 VDC
Delta Electronics PFB0924DHE-T500	4.9 mł/min	175 CFM	0.553 lb	250.84 g	Tubeaxial	Ball	453.1 Pa	1.819 in H2O	Plastic	2 Wire Leads	38 mm	26.4 VDC	14 VDC	8000 RPM	50000 Hrs	CE CSA UL VDE	66.5 dB(A)	34.8 W	-10 °C	-10 °C	60 °C	60 °C	1.45 A	Plastic	24 VDC	IP55 - Dust Protected Water Resistant
Delta Electronics PFB0924GHE	3.62 m³/min	129.3 CFM	0.553 lb	250.84 g	Tubeaxial	Ball	252.8 Pa	1.015 in H2O	Plastic	2 Wire Leads	38 mm	26.4 VDC	14 VDC	6000 RPM	50000 Hrs	CE CSA UL VDE	60.5 dB(A)	15.12 W	-10 °C	-10 °C	60 °C	60 °C	0.63 A	Plastic	24 VDC
Delta Electronics PFB0924DHE-R00	4.9 mł/min	175 CFM	0.553 lb	250.84 g	Tubeaxial	Ball	453.1 Pa	1.819 in H2O	Plastic	3 Wire Leads	38 mm	26.4 VDC	14 VDC	8000 RPM	50000 Hrs	CE CSA UL VDE	66.5 dB(A)	34.8 W	-10 °C	-10 °C	60 °C	60 °C	1.45 A	Plastic	24 VDC		Locked Rotor Sensor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 175.0 CFM (4.90m³/min) 3 Wire Leads
