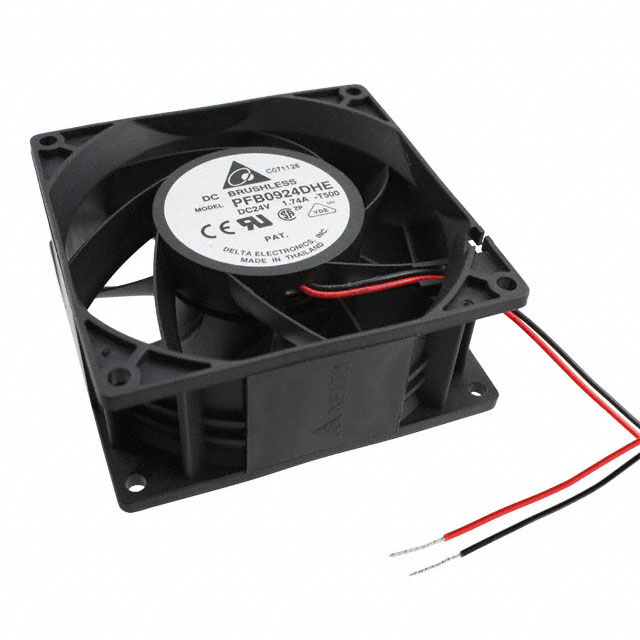

PFB0924DHE-T500

Active

Delta Electronics

FAN AXIAL 92X38MM 24VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 92X38MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	PFB0924DHE-T500

Air Flow	4.9 mł/min
Air Flow	175 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.45 A
Fan Type	Tubeaxial
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	66.5 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	34.8 W
RPM	8000 RPM
Static Pressure	453.1 Pa
Static Pressure	1.819 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	14 VDC
Weight	0.553 lb
Weight	250.84 g
Width [y]	38 mm

Part	Air Flow	Air Flow	Weight	Weight	Fan Type	Bearing Type	Static Pressure	Static Pressure	Material - Frame	Termination	Width [y]	Voltage Range [Max]	Voltage Range [Min]	RPM	Lifetime @ Temp.	Approval Agency	Noise	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Current Rating (Amps)	Material - Blade	Voltage - Rated	Ingress Protection	Features
Delta Electronics PFB0924DHE	4.9 mł/min	175 CFM	0.553 lb	250.84 g	Tubeaxial	Ball	453.1 Pa	1.819 in H2O	Plastic	2 Wire Leads	38 mm	26.4 VDC	14 VDC	8000 RPM	50000 Hrs	CE CSA UL VDE	66.5 dB(A)	34.8 W	-10 °C	-10 °C	60 °C	60 °C	1.45 A	Plastic	24 VDC
Delta Electronics PFB0924DHE-T500	4.9 mł/min	175 CFM	0.553 lb	250.84 g	Tubeaxial	Ball	453.1 Pa	1.819 in H2O	Plastic	2 Wire Leads	38 mm	26.4 VDC	14 VDC	8000 RPM	50000 Hrs	CE CSA UL VDE	66.5 dB(A)	34.8 W	-10 °C	-10 °C	60 °C	60 °C	1.45 A	Plastic	24 VDC	IP55 - Dust Protected Water Resistant
Delta Electronics PFB0924GHE	3.62 m³/min	129.3 CFM	0.553 lb	250.84 g	Tubeaxial	Ball	252.8 Pa	1.015 in H2O	Plastic	2 Wire Leads	38 mm	26.4 VDC	14 VDC	6000 RPM	50000 Hrs	CE CSA UL VDE	60.5 dB(A)	15.12 W	-10 °C	-10 °C	60 °C	60 °C	0.63 A	Plastic	24 VDC
Delta Electronics PFB0924DHE-R00	4.9 mł/min	175 CFM	0.553 lb	250.84 g	Tubeaxial	Ball	453.1 Pa	1.819 in H2O	Plastic	3 Wire Leads	38 mm	26.4 VDC	14 VDC	8000 RPM	50000 Hrs	CE CSA UL VDE	66.5 dB(A)	34.8 W	-10 °C	-10 °C	60 °C	60 °C	1.45 A	Plastic	24 VDC		Locked Rotor Sensor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 175.0 CFM (4.90m³/min) 2 Wire Leads
