R191215000
ActiveRadiall USA, Inc.

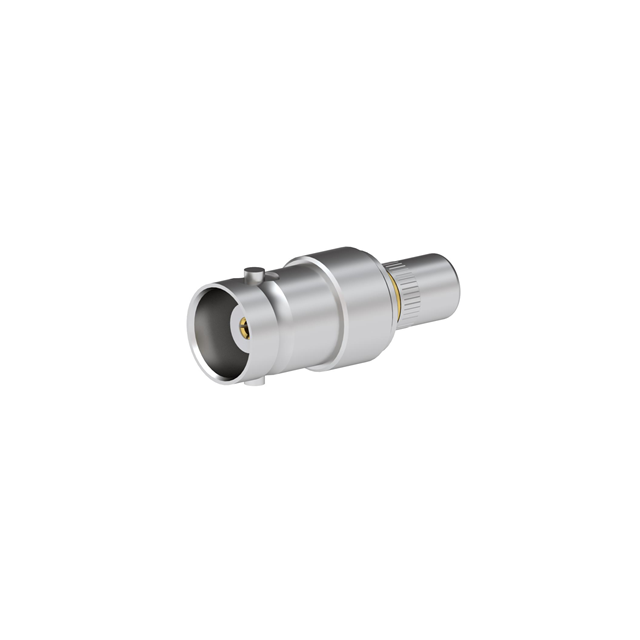

RF CONNECTOR ADAPTER, BNC-SMB, FEMALE-FEMALE, JACK-PLUG
Deep-Dive with AI
Search across all available documentation for this part.
R191215000
ActiveRadiall USA, Inc.
RF CONNECTOR ADAPTER, BNC-SMB, FEMALE-FEMALE, JACK-PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R191215000 |
|---|---|
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, SMB Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On, Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 56.40 | |
| 10 | $ 51.76 | |||
| 30 | $ 49.77 | |||
| 50 | $ 48.11 | |||
| 100 | $ 45.45 | |||
Description
General part information
R19121 Series
Adapter Coaxial Connector BNC Jack, Female Socket To SMB Plug, Female Socket 50 Ohms
