R191212000

Active

Radiall USA, Inc.

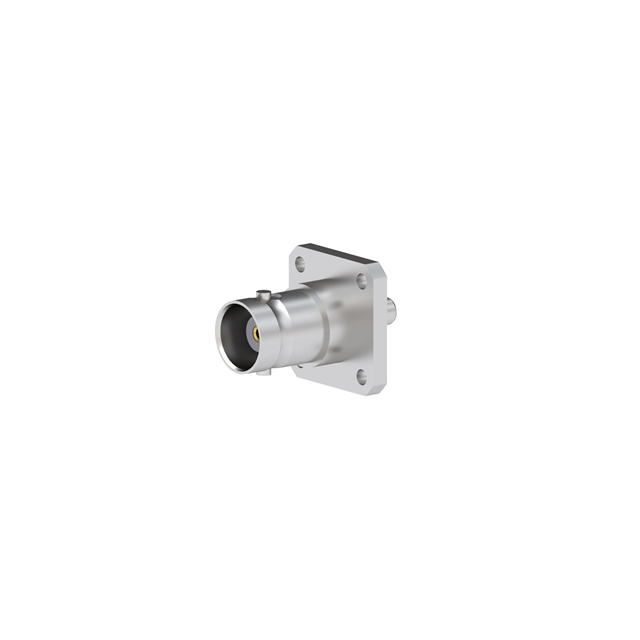

RF CONNECTOR ADAPTER, BNC-SMB, PANEL MOUNT, FEMALE-MALE, JACK

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF CONNECTOR ADAPTER, BNC-SMB, PANEL MOUNT, FEMALE-MALE, JACK

Technical Specifications

Parameters and characteristics for this part

Specification	R191212000

Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Male Pin, SMB Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On, Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Impedance	Dielectric Material	Center Contact Plating	Mounting Feature	Convert From (Adapter End)	Body Finish	Fastening Type	Style	Convert To (Adapter End)	Conversion Type	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Body Material	Frequency - Max [Max]	Adapter Type	Center Gender	Mounting Type
Radiall USA, Inc. R191212000	50 Ohms	Polytetrafluoroethylene (PTFE)	Gold	Flange	BNC Jack Female Socket	Nickel	Bayonet Lock Snap-On	Straight	Male Pin SMB Jack	Between Series	500	155 °C	-55 °C	Beryllium Copper	Brass	4 GHz	Jack to Jack
Radiall USA, Inc. R191215000	50 Ohms	Polytetrafluoroethylene (PTFE)	Gold		BNC Jack Female Socket	Nickel	Bayonet Lock Snap-On	Straight	Female Socket SMB Plug	Between Series	500	155 °C	-55 °C	Beryllium Copper	Brass	4 GHz	Plug to Jack	Female to Female	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 57.23

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To SMB Jack, Male Pin 50 Ohms
