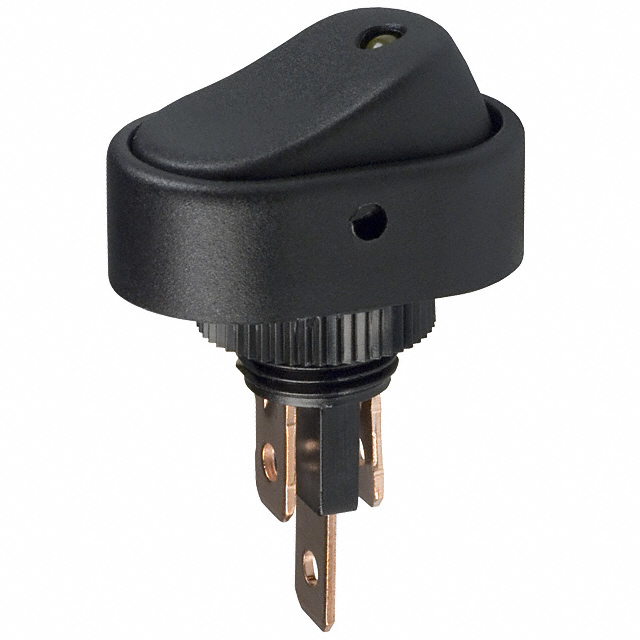

CLS-RO11A12250Y

Obsolete

Lumex Opto/Components Inc.

SWITCH ROCKER SPST 30A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLS-RO11A12250Y

Obsolete

Lumex Opto/Components Inc.

SWITCH ROCKER SPST 30A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLS-RO11A12250Y

Actuator Marking	No Marking
Actuator Type	Oval - Illuminated
Circuit	SPST
Color - Actuator/Cap	Black
Illumination Type, Color	LED, Yellow
Mounting Type	Panel Mount, Threaded Body with Nut
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

CLS-RO11 Series

Part	Voltage Rating - DC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Current Rating (Amps)	Actuator Marking	Actuator Type	Circuit	Mounting Type	Color - Actuator/Cap	Illumination Type, Color	Switch Function	Panel Cutout Dimensions [diameter]
Lumex Opto/Components Inc. CLS-RO11A12251G	12 V	17.8 mm	35.2 mm	Quick Connect - 0.250" (6.3mm)	20 A	No Marking	Oval - Illuminated	SPST	Panel Mount Snap-In	Green	Green LED	On-Off
Lumex Opto/Components Inc. CLS-RO11A12250G	12 V			Quick Connect - 0.250" (6.3mm)		No Marking	Oval - Illuminated	SPST	Panel Mount Threaded Body with Nut	Black	Green LED	On-Off	12.2 mm
Lumex Opto/Components Inc. CLS-RO11A12250Y	12 V			Quick Connect - 0.250" (6.3mm)		No Marking	Oval - Illuminated	SPST	Panel Mount Threaded Body with Nut	Black	LED Yellow	On-Off	12.2 mm
Lumex Opto/Components Inc. CLS-RO11A12251R	12 V	17.8 mm	35.2 mm	Quick Connect - 0.250" (6.3mm)	20 A	No Marking	Oval - Illuminated	SPST	Panel Mount Snap-In	Red	LED Red	On-Off
Lumex Opto/Components Inc. CLS-RO11A12250R	12 V			Quick Connect - 0.250" (6.3mm)		No Marking	Oval - Illuminated	SPST	Panel Mount Threaded Body with Nut	Black	LED Red	On-Off	12.2 mm
Lumex Opto/Components Inc. CLS-RO11A12251Y	12 V	17.8 mm	35.2 mm	Quick Connect - 0.250" (6.3mm)	20 A	No Marking	Oval - Illuminated	SPST	Panel Mount Snap-In	Yellow	LED Yellow	On-Off
Lumex Opto/Components Inc. CLS-RO11A12251B	12 V	17.8 mm	35.2 mm	Quick Connect - 0.250" (6.3mm)	20 A	No Marking	Oval - Illuminated	SPST	Panel Mount Snap-In	Blue	Blue LED	On-Off
Lumex Opto/Components Inc. CLS-RO11A12250B	12 V			Quick Connect - 0.250" (6.3mm)		No Marking	Oval - Illuminated	SPST	Panel Mount Threaded Body with Nut	Black	Blue LED	On-Off	12.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CLS-RO11 Series

Rocker Switch SPST 30A (DC) Panel Mount, Threaded Body with Nut
