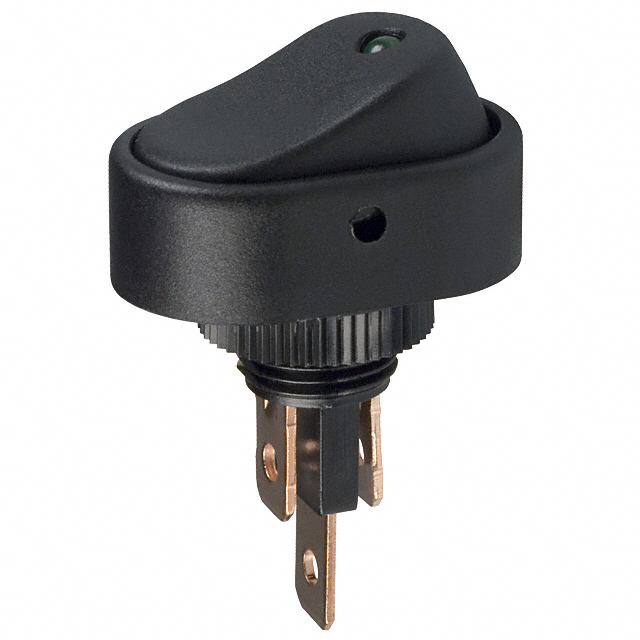

CLS-RO11A12250G
ObsoleteLumex Opto/Components Inc.
SWITCH ROCKER SPST 30A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLS-RO11A12250G
ObsoleteLumex Opto/Components Inc.
SWITCH ROCKER SPST 30A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLS-RO11A12250G |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Oval - Illuminated |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Illumination Type, Color | LED, Green |
| Mounting Type | Panel Mount, Threaded Body with Nut |
| Panel Cutout Dimensions [diameter] | 12.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 12 V |
CLS-RO11 Series
| Part | Voltage Rating - DC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination Style | Current Rating (Amps) | Actuator Marking | Actuator Type | Circuit | Mounting Type | Color - Actuator/Cap | Illumination Type, Color | Switch Function | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. | 12 V | 17.8 mm | 35.2 mm | Quick Connect - 0.250" (6.3mm) | 20 A | No Marking | Oval - Illuminated | SPST | Panel Mount Snap-In | Green | Green LED | On-Off | |
Lumex Opto/Components Inc. | 12 V | Quick Connect - 0.250" (6.3mm) | No Marking | Oval - Illuminated | SPST | Panel Mount Threaded Body with Nut | Black | Green LED | On-Off | 12.2 mm | |||
Lumex Opto/Components Inc. | 12 V | Quick Connect - 0.250" (6.3mm) | No Marking | Oval - Illuminated | SPST | Panel Mount Threaded Body with Nut | Black | LED Yellow | On-Off | 12.2 mm | |||
Lumex Opto/Components Inc. | 12 V | 17.8 mm | 35.2 mm | Quick Connect - 0.250" (6.3mm) | 20 A | No Marking | Oval - Illuminated | SPST | Panel Mount Snap-In | Red | LED Red | On-Off | |
Lumex Opto/Components Inc. | 12 V | Quick Connect - 0.250" (6.3mm) | No Marking | Oval - Illuminated | SPST | Panel Mount Threaded Body with Nut | Black | LED Red | On-Off | 12.2 mm | |||
Lumex Opto/Components Inc. | 12 V | 17.8 mm | 35.2 mm | Quick Connect - 0.250" (6.3mm) | 20 A | No Marking | Oval - Illuminated | SPST | Panel Mount Snap-In | Yellow | LED Yellow | On-Off | |
Lumex Opto/Components Inc. | 12 V | 17.8 mm | 35.2 mm | Quick Connect - 0.250" (6.3mm) | 20 A | No Marking | Oval - Illuminated | SPST | Panel Mount Snap-In | Blue | Blue LED | On-Off | |
Lumex Opto/Components Inc. | 12 V | Quick Connect - 0.250" (6.3mm) | No Marking | Oval - Illuminated | SPST | Panel Mount Threaded Body with Nut | Black | Blue LED | On-Off | 12.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CLS-RO11 Series
Rocker Switch SPST 30A (DC) Panel Mount, Threaded Body with Nut
