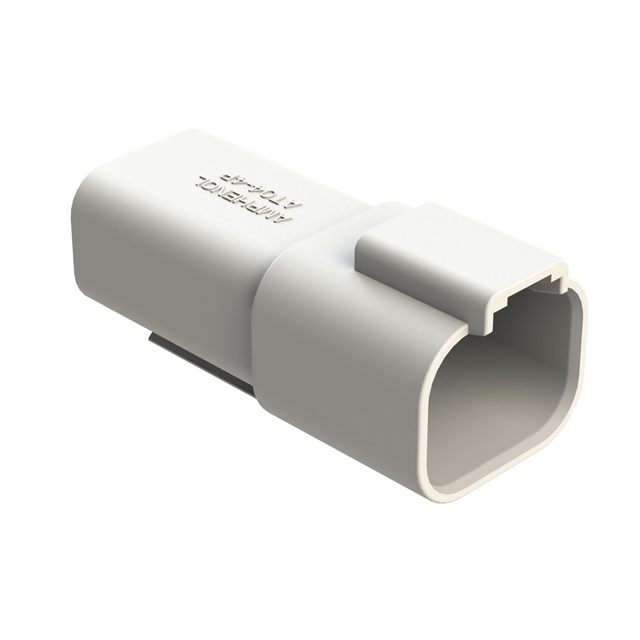

AT04-4P-WHT

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 4POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA Series Pick Your Color Datasheet +1

AT04-4P-WHT

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 4POS

Deep-Dive with AI

DocumentsA Series Pick Your Color Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-4P-WHT

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-4P Series

Part	Features	Connector Type	Fastening Type	Note	Contact Type	Contact Termination	Number of Rows	Color	Number of Positions	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Ingress Protection	Applications	Contact Shape	Insulation Color	Current Rating (Amps)	Style	Contact Material	Contact Finish - Mating	Termination	Insulation Height	Insulation Height	Number of Positions Loaded	Shrouding
Amphenol Sine Systems Corp AT04-4P-CL06	Mounting Flange Sealed	Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2	Black	4	Thermoplastic	-55 °C	125 °C
Amphenol Sine Systems Corp AT04-4P-GRN	Sealed	Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2	Green	4	Thermoplastic	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-4P-ORG	Sealed	Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2		4	Thermoplastic	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-4P-SR02RED	Cap (Cover) IP68 IP69K Reduced Wire Seals Strain Relief	Receptacle	Latch Holder		Male Pin	Crimp	2	Red	4	Thermoplastic	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-4P-BM04		Receptacle	Latch Holder		Male Pin		2		4	Thermoplastic	-55 °C	125 °C	Through Hole	IP67	Automotive General Purpose Industrial	Circular	Black	13 A	Board to Cable/Wire	Copper Alloy	Nickel	Solder	0.835 "	21.21 mm	All	Shrouded - 4 Wall
Amphenol Sine Systems Corp AT04-4P-YEL	Sealed	Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2	Yellow	4	Thermoplastic	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-4P-L012	Mounting Flange Sealed	Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2	Gray	4	Thermoplastic	-55 °C	125 °C
Amphenol Sine Systems Corp AT04-4P-WHT	Sealed	Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2	White	4	Thermoplastic	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-4P-RD01BLK	Sealed	Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2	Black	4	Thermoplastic	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-4P-MM01		Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2	Gray	4	Thermoplastic	-55 °C	125 °C	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.55
		10	$ 1.35
		25	$ 1.30
		50	$ 1.27
		100	$ 1.21

Description

General part information

AT04-4P Series

4 Rectangular Connectors - Housings Receptacle White

Documents

Technical documentation and resources

A Series Pick Your Color

Datasheet

AT Series

Datasheet
