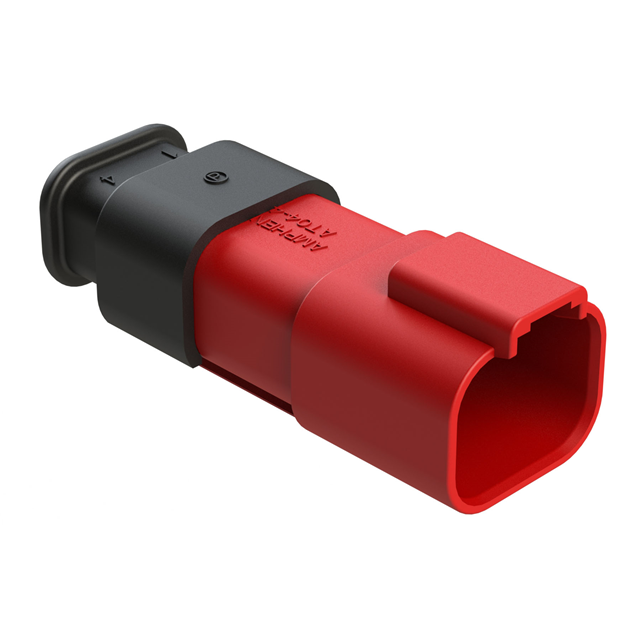

AT04-4P-SR02RED

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 4POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAT Series SR01/02 Datasheet

AT04-4P-SR02RED

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 4POS

Deep-Dive with AI

DocumentsAT Series SR01/02 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-4P-SR02RED

Color	Red
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Cap (Cover), IP68, Strain Relief, IP69K, Reduced Wire Seals
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-4P Series

Part	Features	Connector Type	Fastening Type	Note	Contact Type	Contact Termination	Number of Rows	Color	Number of Positions	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Ingress Protection	Applications	Contact Shape	Insulation Color	Current Rating (Amps)	Style	Contact Material	Contact Finish - Mating	Termination	Insulation Height	Insulation Height	Number of Positions Loaded	Shrouding
Amphenol Sine Systems Corp AT04-4P-CL06	Mounting Flange Sealed	Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2	Black	4	Thermoplastic	-55 °C	125 °C
Amphenol Sine Systems Corp AT04-4P-GRN	Sealed	Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2	Green	4	Thermoplastic	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-4P-ORG	Sealed	Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2		4	Thermoplastic	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-4P-SR02RED	Cap (Cover) IP68 IP69K Reduced Wire Seals Strain Relief	Receptacle	Latch Holder		Male Pin	Crimp	2	Red	4	Thermoplastic	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-4P-BM04		Receptacle	Latch Holder		Male Pin		2		4	Thermoplastic	-55 °C	125 °C	Through Hole	IP67	Automotive General Purpose Industrial	Circular	Black	13 A	Board to Cable/Wire	Copper Alloy	Nickel	Solder	0.835 "	21.21 mm	All	Shrouded - 4 Wall
Amphenol Sine Systems Corp AT04-4P-YEL	Sealed	Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2	Yellow	4	Thermoplastic	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-4P-L012	Mounting Flange Sealed	Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2	Gray	4	Thermoplastic	-55 °C	125 °C
Amphenol Sine Systems Corp AT04-4P-WHT	Sealed	Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2	White	4	Thermoplastic	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-4P-RD01BLK	Sealed	Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2	Black	4	Thermoplastic	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-4P-MM01		Receptacle	Latch Holder	Contacts Not Included	Male Pin	Crimp	2	Gray	4	Thermoplastic	-55 °C	125 °C	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	400	$ 2.16

Description

General part information

AT04-4P Series

4 Rectangular Connectors - Housings Receptacle Red

Documents

Technical documentation and resources

AT Series SR01/02

Datasheet
