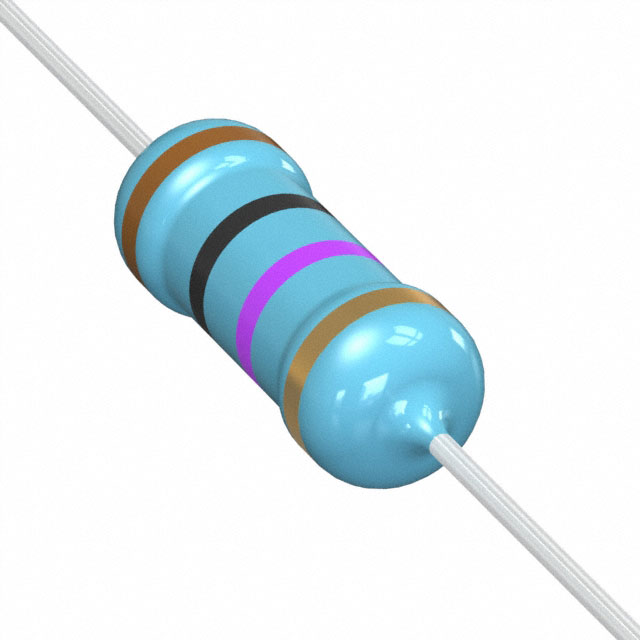

ROX3SJR10
ActiveTE Connectivity Passive Product
RES 0.1 OHM 5% 3W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRailway Sector Catalog
ROX3SJR10
ActiveTE Connectivity Passive Product
RES 0.1 OHM 5% 3W AXIAL
Deep-Dive with AI
DocumentsRailway Sector Catalog
Technical Specifications
Parameters and characteristics for this part
| Specification | ROX3SJR10 |
|---|---|
| Composition | Metal Oxide Film |
| Features | Flame Proof, Safety, Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 3 W |
| Resistance | 0.1 Ohms |
| Size / Dimension [diameter] | 0.217 " |
| Size / Dimension [diameter] | 5.5 mm |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [x] | 0.63 " |
| Supplier Device Package | Axial |
| Temperature Coefficient | 350 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.44 | |
| 10 | $ 0.32 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.10 | |||
| Tape & Box (TB) | 1000 | $ 0.09 | ||
Description
General part information
ROX3 Series
100 mOhms ±5% 3W Through Hole Resistor Axial Flame Proof, Pulse Withstanding, Safety Metal Oxide Film
