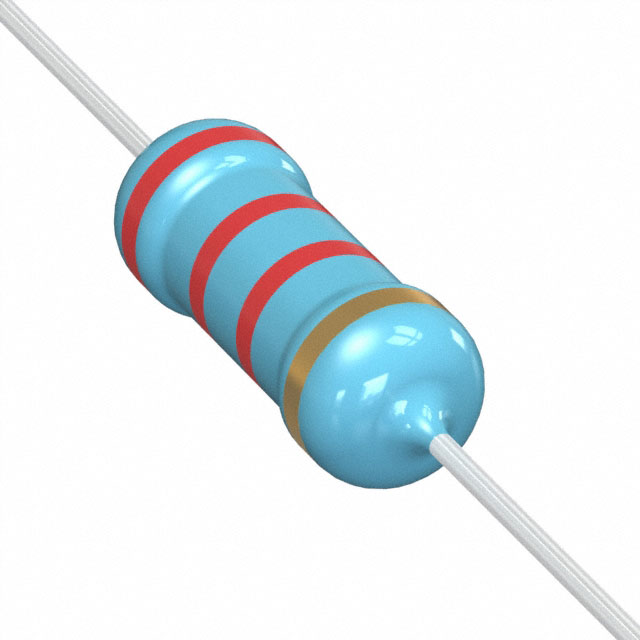

ROX3SJ2K2
ActiveTE Connectivity Passive Product
RES 2.2K OHM 5% 3W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ROX3SJ2K2
ActiveTE Connectivity Passive Product
RES 2.2K OHM 5% 3W AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ROX3SJ2K2 |
|---|---|
| Composition | Metal Oxide Film |
| Features | Flame Proof, Safety, Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 3 W |
| Resistance | 2200 Ohms |
| Size / Dimension [diameter] | 0.217 " |
| Size / Dimension [diameter] | 5.5 mm |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [x] | 0.63 " |
| Supplier Device Package | Axial |
| Temperature Coefficient | 350 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.31 | |
| 10 | $ 0.22 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.13 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.07 | |||
| Tape & Box (TB) | 1000 | $ 0.09 | ||
| 2000 | $ 0.08 | |||
| 3000 | $ 0.07 | |||
| 5000 | $ 0.07 | |||
| 7000 | $ 0.06 | |||
| 10000 | $ 0.06 | |||
Description
General part information
ROX3 Series
2.2 kOhms ±5% 3W Through Hole Resistor Axial Flame Proof, Pulse Withstanding, Safety Metal Oxide Film
