RDM-MBF5-A-4614-O-X-001

Active

Raltron Electronics

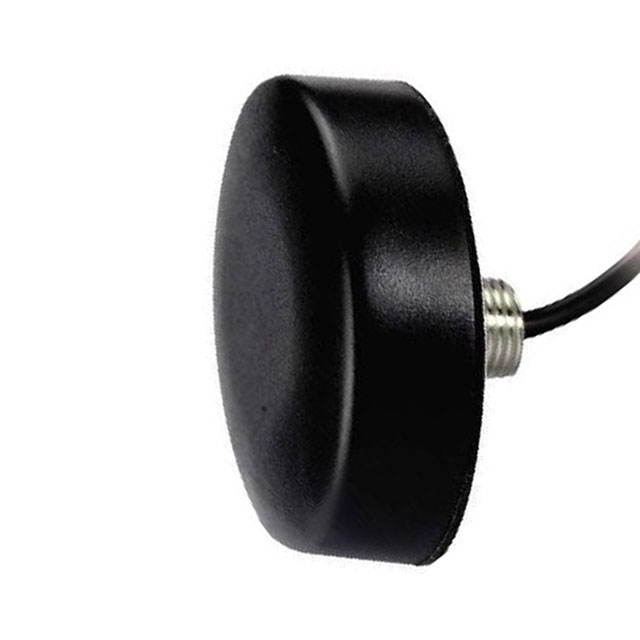

RF ANT 850/900MHZ DOME SMA MALE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RDM-MBF5-A-4614-O-X-001

Active

Raltron Electronics

RF ANT 850/900MHZ DOME SMA MALE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RDM-MBF5-A-4614-O-X-001

Applications	GSM, LNA, Cellular, GPS
Frequency (Center/Band)	850 MHz, 1.9 GHz, 900 MHz, 2.1 GHz, 1.575 GHz, 1.8 GHz
Frequency Group	Wide Band
Frequency Range	1.575 GHz
Frequency Range [Max]	2.17 GHz, 960 MHz
Frequency Range [Min]	1.71 GHz, 824 MHz
Gain	0 dBi, 2 dBic
Height (Max) [Max] [z]	0.642 in
Height (Max) [Max] [z]	16.3 mm
Ingress Protection	IP67, IP66
Mounting Type	Screw
Number of Bands	2
RF Family/Standard	Cellular, Navigation
Termination	IPEX (2)
VSWR	1.5
VSWR	2
VSWR	2.5

RDM-MBF5 Series

Part	Frequency Group	Gain	RF Family/Standard	VSWR	VSWR	VSWR	Frequency Range [Max]	Frequency Range	Frequency Range [Min]	Termination	Frequency (Center/Band)	Mounting Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Applications	Ingress Protection	Number of Bands	Antenna Type	VSWR [Max]	VSWR [Min]	Height (Max) [Max]	Height (Max) [Max]
Raltron Electronics RDM-MBF5-A-4614-O-X-001	Wide Band	0 dBi 2 dBic	Cellular Navigation	1.5	2	2.5	2.17 GHz 960 MHz	1.575 GHz	1.71 GHz 824 MHz	IPEX (2)	1.575 GHz 1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	Screw	0.642 in	16.3 mm	Cellular GPS GSM LNA	IP66 IP67	2
Raltron Electronics RDM-MBF5-A-5048-1M-X-001	Wide Band	2 dBic	Cellular Navigation				2.17 GHz 960 MHz	1.575 GHz	1.71 GHz 824 MHz	RP-SMA Male (2)	1.575 GHz 1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 868 MHz 900 MHz 915 MHz	Screw			Cellular GPS GSM LNA	IP66 IP67	2	Dome	2	1.5	48 mm	1.889 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.62
		10	$ 25.48
		50	$ 24.33
		100	$ 21.75
		250	$ 20.75
		500	$ 19.75

Description

General part information

RDM-MBF5 Series

850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz Cellular, GSM, GPS, LNA Puck RF Antenna 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz 0dBi, 2dBi IPEX (2) Screw
