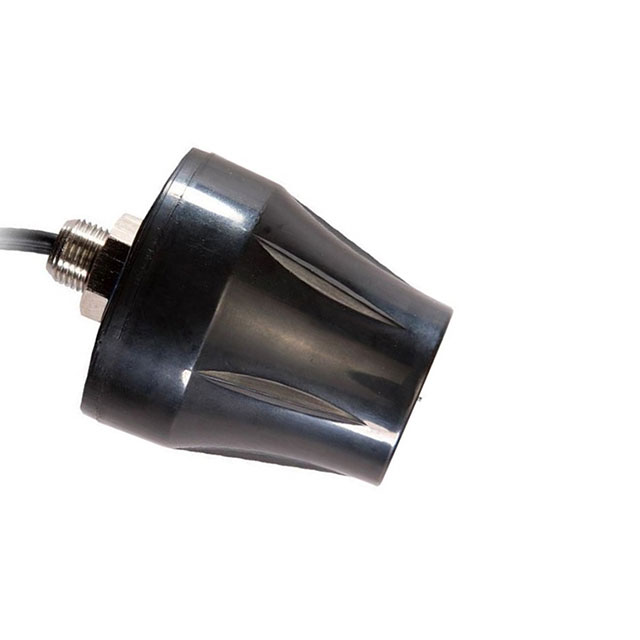

RDM-MBF5-A-5048-1M-X-001
ActiveRaltron Electronics
RF ANT 850MHZ/868MHZ DOME RP-SMA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RDM-MBF5-A-5048-1M-X-001 |
|---|---|
| Antenna Type | Dome |
| Applications | GSM, LNA, Cellular, GPS |
| Frequency (Center/Band) | 915 MHz, 900 MHz, 1.9 GHz, 1.575 GHz, 850 MHz, 868 MHz, 2.1 GHz, 1.8 GHz |
| Frequency Group | Wide Band |
| Frequency Range | 1.575 GHz |
| Frequency Range [Max] | 2.17 GHz, 960 MHz |
| Frequency Range [Min] | 1.71 GHz, 824 MHz |
| Gain | 2 dBic |
| Height (Max) [Max] | 48 mm |
| Height (Max) [Max] | 1.889 in |
| Ingress Protection | IP67, IP66 |
| Mounting Type | Screw |
| Number of Bands | 2 |
| RF Family/Standard | Cellular, Navigation |
| Termination | RP-SMA Male (2) |
| VSWR [Max] | 2 |
| VSWR [Min] | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.39 | |
| 10 | $ 21.57 | |||
| 50 | $ 20.60 | |||
| 100 | $ 18.42 | |||
| 250 | $ 17.57 | |||
| 500 | $ 16.73 | |||
Description
General part information
RDM-MBF5 Series
RF ANTENNA Cellular, GSM, GPS, LNA Dome RP-SMA Male (2) Screw
