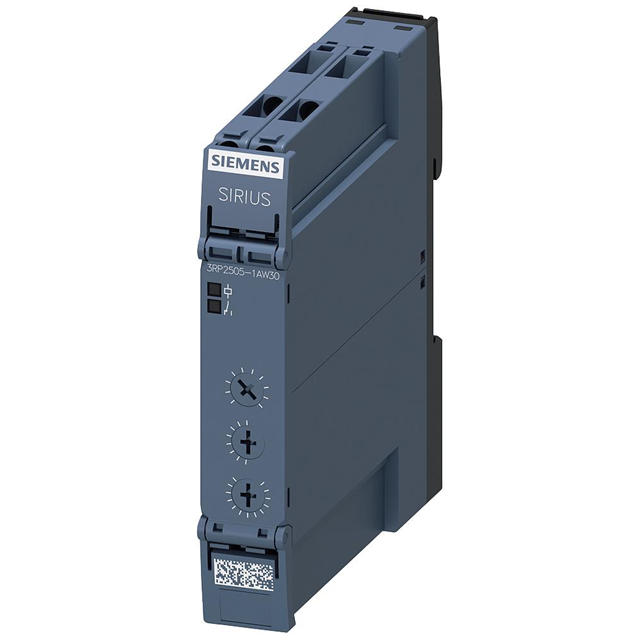

3RP25051AW30

Active

Siemens

RELAY TIME DELAY 100HR 3A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3RP25051AW30

Active

Siemens

RELAY TIME DELAY 100HR 3A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RP25051AW30

Contact Rating @ Voltage	250 VAC, 3 A
Delay Time [Max]	100 Hrs
Delay Time [Min]	0.05 Sec
Function	Programmable (Multi-Function)
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Screwdriver Slot
Timing Initiate Method	Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	12 VAC

3RP2505 Series

Part	Termination Style	Relay Type	Circuit	Delay Time [Max]	Delay Time [Min]	Timing Adjustment Method	Function	Contact Rating @ Voltage	Timing Initiate Method	Voltage - Supply	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]
Siemens 3RP25052BB30	Spring Terminal	Mechanical Relay	DPDT (2 Form C)	100 Hrs	0.05 Sec	Screwdriver Slot	Programmable (Multi-Function)	3 A 250 VAC	Input Voltage	24 VAC	DIN Rail
Siemens 3RP25051AW30	Screw Terminal	Mechanical Relay		100 Hrs	0.05 Sec	Screwdriver Slot	Programmable (Multi-Function)	3 A 250 VAC	Input Voltage		DIN Rail	240 VAC	12 VAC
Siemens 3RP25051CW30	Screw Terminal	Mechanical Relay		100 Hrs	0.05 Sec	Screwdriver Slot	Programmable (Multi-Function)	1 A 24 VDC 250 VAC	Input Voltage		DIN Rail	240 VAC	12 VAC
Siemens 3RP25051BT20	Screw Terminal	Mechanical Relay	DPDT (2 Form C)	100 Hrs	0.05 Sec	Screwdriver Slot	Programmable (Multi-Function)	3 A 250 VAC	Input Voltage		DIN Rail	440 VAC	400 VAC
Siemens 3RP25052RW30	Spring Terminal	Mechanical Relay	DPDT (2 Form C)	100 Hrs	0.05 Sec	Screwdriver Slot	Programmable (Multi-Function)	3 A 250 VAC	Input Voltage		DIN Rail	240 VAC	24 VAC
Siemens 3RP25052CW30	Spring Terminal	Mechanical Relay		100 Hrs	0.05 Sec	Screwdriver Slot	Programmable (Multi-Function)	1 A 24 VDC 250 VAC	Input Voltage		DIN Rail	240 VAC	12 VAC
Siemens 3RP25052BT20	Spring Terminal	Mechanical Relay	DPDT (2 Form C)	100 Hrs	0.05 Sec	Screwdriver Slot	Programmable (Multi-Function)	3 A 250 VAC	Input Voltage		DIN Rail	440 VAC	400 VAC
Siemens 3RP25052AW30	Spring Terminal	Mechanical Relay		100 Hrs	0.05 Sec	Screwdriver Slot	Programmable (Multi-Function)	3 A 250 VAC	Input Voltage		DIN Rail	240 VAC	12 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 230.41
		10	$ 205.15
		25	$ 195.87
		50	$ 189.12

Description

General part information

3RP2505 Series

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 0.05 Sec ~ 100 Hrs Delay 3A @ 250VAC DIN Rail
