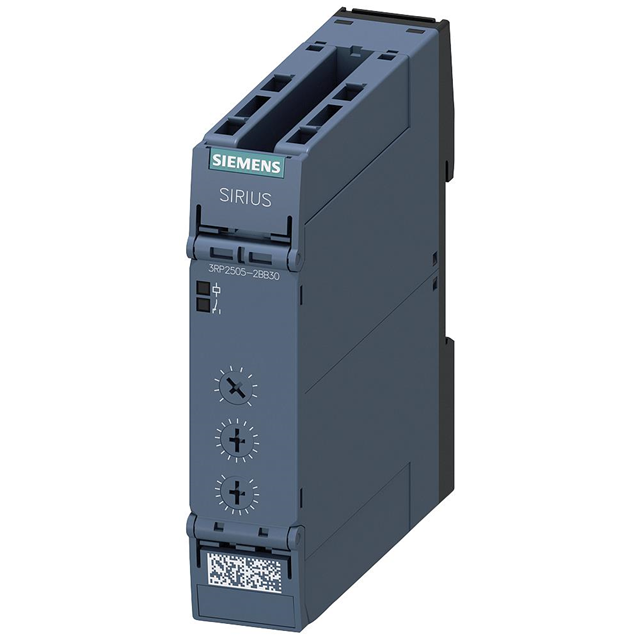

3RP25052BB30
ActiveSiemens
RELAY TIME DELAY 100HR 3A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3RP25052BB30
ActiveSiemens
RELAY TIME DELAY 100HR 3A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RP25052BB30 |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 250 VAC, 3 A |
| Delay Time [Max] | 100 Hrs |
| Delay Time [Min] | 0.05 Sec |
| Function | Programmable (Multi-Function) |
| Mounting Type | DIN Rail |
| Relay Type | Mechanical Relay |
| Termination Style | Spring Terminal |
| Timing Adjustment Method | Screwdriver Slot |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 24 VAC |
3RP2505 Series
| Part | Termination Style | Relay Type | Circuit | Delay Time [Max] | Delay Time [Min] | Timing Adjustment Method | Function | Contact Rating @ Voltage | Timing Initiate Method | Voltage - Supply | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens | Spring Terminal | Mechanical Relay | DPDT (2 Form C) | 100 Hrs | 0.05 Sec | Screwdriver Slot | Programmable (Multi-Function) | 3 A 250 VAC | Input Voltage | 24 VAC | DIN Rail | ||
Siemens | Screw Terminal | Mechanical Relay | 100 Hrs | 0.05 Sec | Screwdriver Slot | Programmable (Multi-Function) | 3 A 250 VAC | Input Voltage | DIN Rail | 240 VAC | 12 VAC | ||
Siemens | Screw Terminal | Mechanical Relay | 100 Hrs | 0.05 Sec | Screwdriver Slot | Programmable (Multi-Function) | 1 A 24 VDC 250 VAC | Input Voltage | DIN Rail | 240 VAC | 12 VAC | ||
Siemens | Screw Terminal | Mechanical Relay | DPDT (2 Form C) | 100 Hrs | 0.05 Sec | Screwdriver Slot | Programmable (Multi-Function) | 3 A 250 VAC | Input Voltage | DIN Rail | 440 VAC | 400 VAC | |
Siemens | Spring Terminal | Mechanical Relay | DPDT (2 Form C) | 100 Hrs | 0.05 Sec | Screwdriver Slot | Programmable (Multi-Function) | 3 A 250 VAC | Input Voltage | DIN Rail | 240 VAC | 24 VAC | |
Siemens | Spring Terminal | Mechanical Relay | 100 Hrs | 0.05 Sec | Screwdriver Slot | Programmable (Multi-Function) | 1 A 24 VDC 250 VAC | Input Voltage | DIN Rail | 240 VAC | 12 VAC | ||
Siemens | Spring Terminal | Mechanical Relay | DPDT (2 Form C) | 100 Hrs | 0.05 Sec | Screwdriver Slot | Programmable (Multi-Function) | 3 A 250 VAC | Input Voltage | DIN Rail | 440 VAC | 400 VAC | |
Siemens | Spring Terminal | Mechanical Relay | 100 Hrs | 0.05 Sec | Screwdriver Slot | Programmable (Multi-Function) | 3 A 250 VAC | Input Voltage | DIN Rail | 240 VAC | 12 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 209.27 | |
Description
General part information
3RP2505 Series
Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.05 Sec ~ 100 Hrs Delay 3A @ 250VAC DIN Rail
