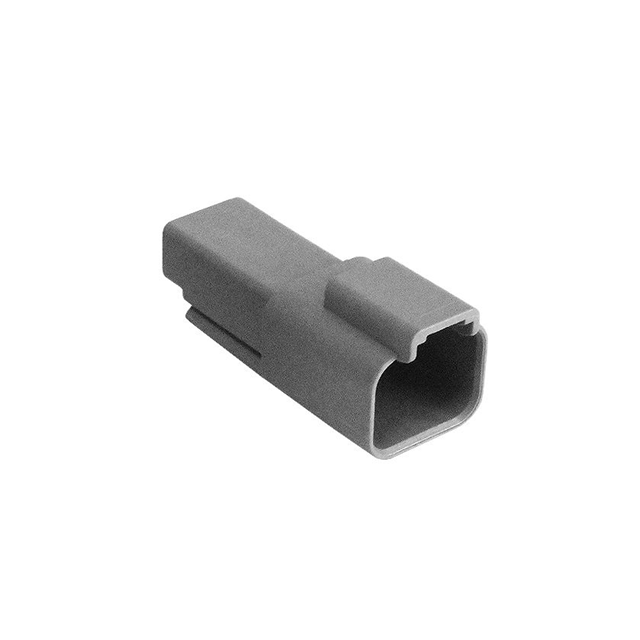

PX0101P02GY

Active

BULGIN LIMITED

CONN RCPT HSG 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PX0101P02GY

Active

BULGIN LIMITED

CONN RCPT HSG 2POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0101P02GY

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin, Power
Fastening Type	Latch Holder
Features	IP68
Insulation Material	Glass Filled, Polyamide (PA), Polybutylene Terephthalate (PBT), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C

PX0101 Series

Part	Fastening Type	Color	Features	Contact Type	Number of Rows	Insulation Material	Contact Termination	Connector Type	Note	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
BULGIN LIMITED PX0101P06GY	Latch Holder	Gray	IP68	Male Pin Power	3	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Crimp	Receptacle	Contacts Not Included	6	-40 °C	120 °C	Free Hanging (In-Line)
BULGIN LIMITED PX0101P12ABK	Latch Holder	Black	IP68	Male Pin Power	2	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Crimp	Receptacle	Contacts Not Included	12	-40 °C	120 °C	Free Hanging (In-Line)
BULGIN LIMITED PX0101P06BK	Latch Holder	Black	IP68	Male Pin Power	3	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Crimp	Receptacle	Contacts Not Included	6	-40 °C	120 °C	Free Hanging (In-Line)
BULGIN LIMITED PX0101P02GY	Latch Holder	Gray	IP68	Male Pin Power	1	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Crimp	Receptacle	Contacts Not Included	2	-40 °C	120 °C	Free Hanging (In-Line)
BULGIN LIMITED PX0101P02BK	Latch Holder	Black	IP68	Male Pin Power	1	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Crimp	Receptacle	Contacts Not Included	2	-40 °C	120 °C	Free Hanging (In-Line)
BULGIN LIMITED PX0101P04GY	Latch Holder	Gray	IP68	Male Pin Power	2	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Crimp	Receptacle	Contacts Not Included	4	-40 °C	120 °C	Free Hanging (In-Line)
BULGIN LIMITED PX0101P04BK	Latch Holder	Black	IP68	Male Pin Power	2	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Crimp	Receptacle	Contacts Not Included	4	-40 °C	120 °C	Free Hanging (In-Line)
BULGIN LIMITED PX0101P08AGY	Latch Holder	Gray	IP68	Male Pin Power	2	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Crimp	Receptacle	Contacts Not Included	8	-40 °C	120 °C	Free Hanging (In-Line)
BULGIN LIMITED PX0101P12AGY	Latch Holder	Gray	IP68	Male Pin Power	2	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Crimp	Receptacle	Contacts Not Included	12	-40 °C	120 °C	Free Hanging (In-Line)
BULGIN LIMITED PX0101P03BK	Latch Holder	Black	IP68	Male Pin Power	2	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Crimp	Receptacle	Contacts Not Included		-40 °C	120 °C	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.74
		10	$ 0.63
		25	$ 0.60
		50	$ 0.59
		100	$ 0.56
		250	$ 0.51
		500	$ 0.46
		1000	$ 0.45

Description

General part information

PX0101 Series

2 Rectangular Connectors - Housings Receptacle Gray

Documents

Technical documentation and resources
