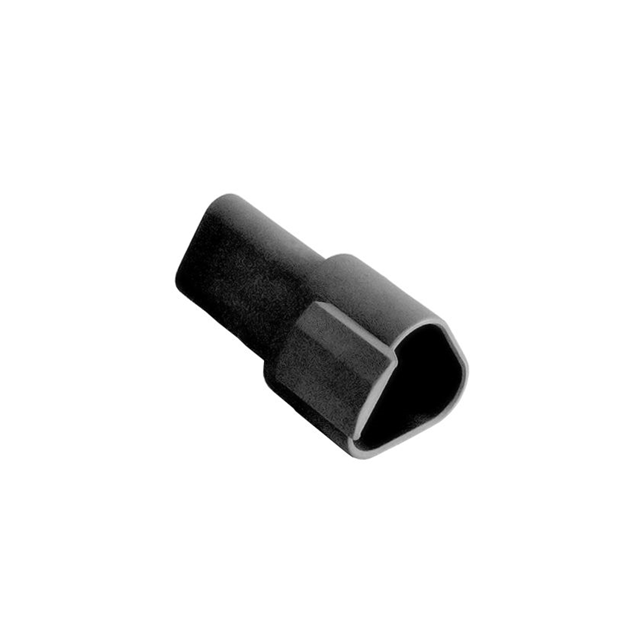

PX0101P03BK
ActiveBULGIN LIMITED
CONN RCPT HSG 3POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PX0101P03BK
ActiveBULGIN LIMITED
CONN RCPT HSG 3POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0101P03BK |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin, Power |
| Fastening Type | Latch Holder |
| Features | IP68 |
| Insulation Material | Glass Filled, Polyamide (PA), Polybutylene Terephthalate (PBT), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
PX0101 Series
| Part | Fastening Type | Color | Features | Contact Type | Number of Rows | Insulation Material | Contact Termination | Connector Type | Note | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | Latch Holder | Gray | IP68 | Male Pin Power | 3 | Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Crimp | Receptacle | Contacts Not Included | 6 | -40 °C | 120 °C | Free Hanging (In-Line) |
BULGIN LIMITED | Latch Holder | Black | IP68 | Male Pin Power | 2 | Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Crimp | Receptacle | Contacts Not Included | 12 | -40 °C | 120 °C | Free Hanging (In-Line) |
BULGIN LIMITED | Latch Holder | Black | IP68 | Male Pin Power | 3 | Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Crimp | Receptacle | Contacts Not Included | 6 | -40 °C | 120 °C | Free Hanging (In-Line) |
BULGIN LIMITED | Latch Holder | Gray | IP68 | Male Pin Power | 1 | Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Crimp | Receptacle | Contacts Not Included | 2 | -40 °C | 120 °C | Free Hanging (In-Line) |
BULGIN LIMITED | Latch Holder | Black | IP68 | Male Pin Power | 1 | Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Crimp | Receptacle | Contacts Not Included | 2 | -40 °C | 120 °C | Free Hanging (In-Line) |
BULGIN LIMITED | Latch Holder | Gray | IP68 | Male Pin Power | 2 | Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Crimp | Receptacle | Contacts Not Included | 4 | -40 °C | 120 °C | Free Hanging (In-Line) |
BULGIN LIMITED | Latch Holder | Black | IP68 | Male Pin Power | 2 | Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Crimp | Receptacle | Contacts Not Included | 4 | -40 °C | 120 °C | Free Hanging (In-Line) |
BULGIN LIMITED | Latch Holder | Gray | IP68 | Male Pin Power | 2 | Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Crimp | Receptacle | Contacts Not Included | 8 | -40 °C | 120 °C | Free Hanging (In-Line) |
BULGIN LIMITED | Latch Holder | Gray | IP68 | Male Pin Power | 2 | Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Crimp | Receptacle | Contacts Not Included | 12 | -40 °C | 120 °C | Free Hanging (In-Line) |
BULGIN LIMITED | Latch Holder | Black | IP68 | Male Pin Power | 2 | Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Crimp | Receptacle | Contacts Not Included | -40 °C | 120 °C | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.00 | |
| 10 | $ 0.87 | |||
| 25 | $ 0.83 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.78 | |||
| 250 | $ 0.70 | |||
| 500 | $ 0.65 | |||
Description
General part information
PX0101 Series
3 Rectangular Connectors - Housings Receptacle Black
