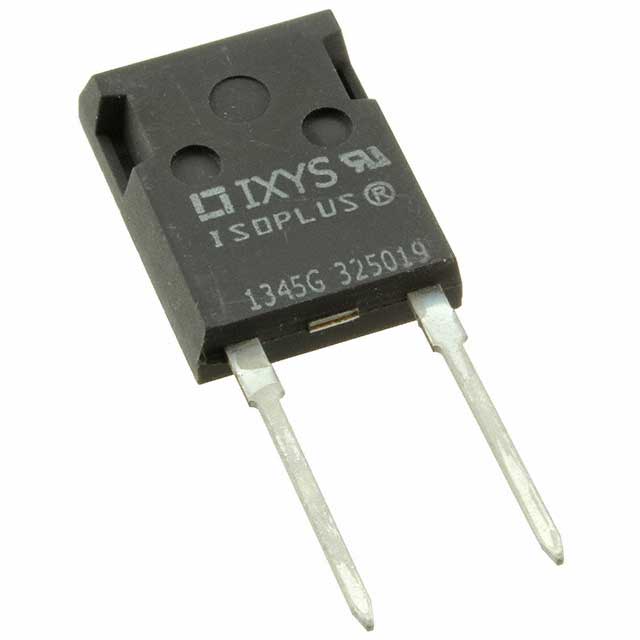

DSEI30-10AR

Active

IXYS

DIODE GP 1KV 30A ISOPLUS247

Search across all available documentation for this part.

Active

IXYS

DIODE GP 1KV 30A ISOPLUS247

Technical Specifications

Parameters and characteristics for this part

Specification	DSEI30-10AR

Current - Average Rectified (Io)	30 A
Current - Reverse Leakage @ Vr	750 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	ISOPLUS247™
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	ISOPLUS247™ (BR)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V
Voltage - Forward (Vf) (Max) @ If	2.4 V

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Speed	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Technology	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Supplier Device Package	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
IXYS DSEI30-10AR	1000 V	ISOPLUS247™	200 mA 500 ns	2.4 V	Through Hole	Standard	50 ns	30 A	ISOPLUS247™ (BR)	750 µA	150 °C	-40 °C
IXYS DSEI30-10A	1000 V	TO-247-2	200 mA 500 ns	2.4 V	Through Hole	Standard	50 ns	30 A	TO-247AD	750 µA	150 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1000 V 30A Through Hole ISOPLUS247™ (BR)
