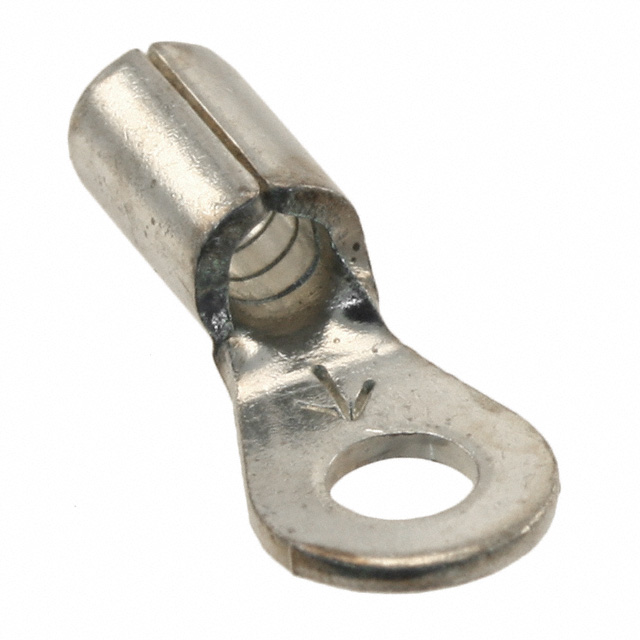

MU14-4R/SK

Active

3M (TC)

CONN RING CIRC 14-16AWG #4 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MU14-4R/SK

Active

3M (TC)

CONN RING CIRC 14-16AWG #4 CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MU14-4R/SK

Contact Finish	Tin
Contact Material	ETP, Copper
Insulation	Non-Insulated
Length - Overall [x]	0.6 in
Length - Overall [x]	15.24 mm
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	4 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.03 in
Thickness	0.76 mm
Width - Outer Edges [y]	0.25 "
Width - Outer Edges [y]	6.35 mm

MU14 Series

Part	Features	Termination	Mounting Type	Contact Finish	Tab Thickness	Tab Thickness	Terminal Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Insulation	Gender	Tab Width	Tab Width	Stud/Tab Size	Length - Overall	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Number of Wire Entries	Stud/Tab Size	Length - Termination	Length - Termination [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]
3M (TC) MU14-187DFK	Butted Seam	Crimp	Free Hanging (In-Line)	Tin	0.02 "	0.51 mm	Standard	0.58 in	14.73 mm	Brass	Non-Insulated	Female	4.75 mm	0.187 in
3M (TC) MU14-14RHTK		Crimp	Free Hanging (In-Line)	Nickel			Circular	0.93 in		Steel	Non-Insulated				0.25 Stud	23.62 mm	14.22 mm	0.56 in	0.03 in	0.76 mm
3M (TC) MU14BCHTK		Crimp					Butt Splice Individual Openings Inline				Non-Insulated										2
3M (TC) MU14-187DF/FLAGX-BOTTLE	Butted Seam	Crimp	Free Hanging (In-Line) Right Angle	Tin	0.02 "	0.51 mm	Angled - 90° Flag			Brass	Non-Insulated	Female	4.75 mm	0.187 in
3M (TC) MU14-4R/SK		Crimp	Free Hanging (In-Line)	Tin			Circular	0.6 in	15.24 mm	Copper ETP	Non-Insulated				4 Stud		6.35 mm	0.25 "	0.03 in	0.76 mm
3M (TC) MU14-8RLX-BOTTLE		Crimp	Free Hanging (In-Line)	Tin			Circular	0.74 in	18.8 mm	Copper ETP	Non-Insulated						6.35 mm	0.25 "	0.03 in	0.76 mm		8 Stud
3M (TC) MU14-14RHTX-BOTTLE		Crimp	Free Hanging (In-Line)	Nickel			Circular	0.93 in		Steel	Non-Insulated				0.25 Stud	23.62 mm	14.22 mm	0.56 in	0.03 in	0.76 mm
3M (TC) MU14-6R/SK		Crimp	Free Hanging (In-Line)	Tin			Circular	0.6 in	15.24 mm	Copper ETP	Non-Insulated				6 Stud		6.35 mm	0.25 "	0.03 in	0.76 mm
3M (TC) MU14-4FLK	Butted Seam	Crimp	Free Hanging (In-Line)	Tin			Snap Spring	0.68 in	17.27 mm	Copper ETP	Non-Insulated				4 Stud		6.35 mm	0.25 "					6.35 mm	0.25 "	0.25 in	6.35 mm
3M (TC) MU14-250DF/FLAGX-BOTTLE	Butted Seam	Crimp	Free Hanging (In-Line) Right Angle	Tin	0.032 in	0.81 mm	Angled - 90° Flag			Brass	Non-Insulated	Female	6.35 mm	0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.48
		10	$ 0.36
		25	$ 0.33
		50	$ 0.30
		100	$ 0.28
		250	$ 0.25
		500	$ 0.23
		1000	$ 0.22
		3000	$ 0.19

Description

General part information

MU14 Series

Ring Terminal Connector 4 Stud Circular 14-16 AWG Crimp
