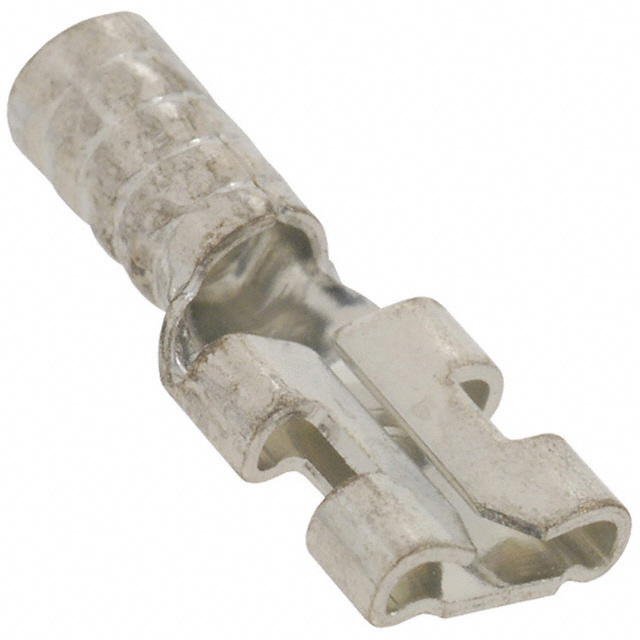

MU14-187DFK

Active

3M (TC)

CONN QC RCPT 14-16AWG 0.187

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MU14-187DFK

Active

3M (TC)

CONN QC RCPT 14-16AWG 0.187

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MU14-187DFK

Contact Finish	Tin
Contact Material	Brass
Features	Butted Seam
Gender	Female
Insulation	Non-Insulated
Length - Overall [x]	0.58 in
Length - Overall [x]	14.73 mm
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Standard
Termination	Crimp

MU14 Series

Part	Features	Termination	Mounting Type	Contact Finish	Tab Thickness	Tab Thickness	Terminal Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Insulation	Gender	Tab Width	Tab Width	Stud/Tab Size	Length - Overall	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Number of Wire Entries	Stud/Tab Size	Length - Termination	Length - Termination [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]
3M (TC) MU14-187DFK	Butted Seam	Crimp	Free Hanging (In-Line)	Tin	0.02 "	0.51 mm	Standard	0.58 in	14.73 mm	Brass	Non-Insulated	Female	4.75 mm	0.187 in
3M (TC) MU14-14RHTK		Crimp	Free Hanging (In-Line)	Nickel			Circular	0.93 in		Steel	Non-Insulated				0.25 Stud	23.62 mm	14.22 mm	0.56 in	0.03 in	0.76 mm
3M (TC) MU14BCHTK		Crimp					Butt Splice Individual Openings Inline				Non-Insulated										2
3M (TC) MU14-187DF/FLAGX-BOTTLE	Butted Seam	Crimp	Free Hanging (In-Line) Right Angle	Tin	0.02 "	0.51 mm	Angled - 90° Flag			Brass	Non-Insulated	Female	4.75 mm	0.187 in
3M (TC) MU14-4R/SK		Crimp	Free Hanging (In-Line)	Tin			Circular	0.6 in	15.24 mm	Copper ETP	Non-Insulated				4 Stud		6.35 mm	0.25 "	0.03 in	0.76 mm
3M (TC) MU14-8RLX-BOTTLE		Crimp	Free Hanging (In-Line)	Tin			Circular	0.74 in	18.8 mm	Copper ETP	Non-Insulated						6.35 mm	0.25 "	0.03 in	0.76 mm		8 Stud
3M (TC) MU14-14RHTX-BOTTLE		Crimp	Free Hanging (In-Line)	Nickel			Circular	0.93 in		Steel	Non-Insulated				0.25 Stud	23.62 mm	14.22 mm	0.56 in	0.03 in	0.76 mm
3M (TC) MU14-6R/SK		Crimp	Free Hanging (In-Line)	Tin			Circular	0.6 in	15.24 mm	Copper ETP	Non-Insulated				6 Stud		6.35 mm	0.25 "	0.03 in	0.76 mm
3M (TC) MU14-4FLK	Butted Seam	Crimp	Free Hanging (In-Line)	Tin			Snap Spring	0.68 in	17.27 mm	Copper ETP	Non-Insulated				4 Stud		6.35 mm	0.25 "					6.35 mm	0.25 "	0.25 in	6.35 mm
3M (TC) MU14-250DF/FLAGX-BOTTLE	Butted Seam	Crimp	Free Hanging (In-Line) Right Angle	Tin	0.032 in	0.81 mm	Angled - 90° Flag			Brass	Non-Insulated	Female	6.35 mm	0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.42
		10	$ 0.37
		25	$ 0.34
		50	$ 0.32
		100	$ 0.30
		250	$ 0.28
		500	$ 0.26
		1000	$ 0.22
		3000	$ 0.20

Description

General part information

MU14 Series

0.187" (4.75mm) Quick Connect Female 14-16 AWG Crimp Connector Non-Insulated
