0901471103

Active

Molex

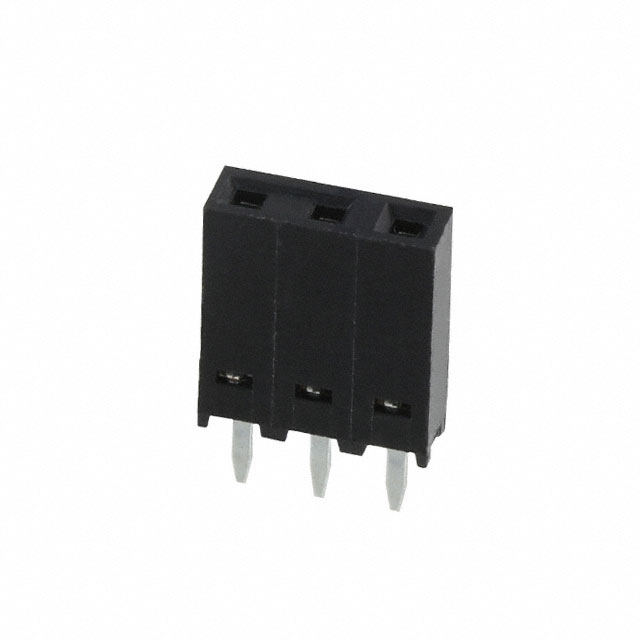

CONN RCPT 3POS 0.1 TIN PCB

Search across all available documentation for this part.

Active

Molex

CONN RCPT 3POS 0.1 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Specification	0901471103

Applications	General Purpose, Medical, Lighting, Automotive, Telecommunications
Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	40 µin
Contact Finish Thickness - Mating	1.02 µm
Contact Finish Thickness - Post	1.02 Ám
Contact Finish Thickness - Post	40 Áin
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	350 V

C-Grid III PC Board Connector, Single Row, Vertical, 6 Circuits, Gold (Au) Plating

Part	Voltage Rating	Mounting Type	Insulation Color	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Shape	Number of Rows	Termination	Contact Type	Insulation Height	Insulation Height	Contact Material	Contact Finish - Post	Insulation Material	Fastening Type	Number of Positions Loaded	Applications	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Number of Positions
Molex 901471214
Molex 0901471103	350 V	Through Hole	Black	0.1 in	2.54 mm	105 ░C	-55 °C	40 µin	1.02 µm	0.114 in	2.9 mm	Square	1	Solder	Female Socket	0.335 "	8.51 mm	Phosphor Bronze	Tin	Polyester Glass Filled	Push-Pull	All	Automotive General Purpose Lighting Medical Telecommunications	3 A	1.02 Ám	40 Áin	Receptacle
Molex 901471132
Molex 901471204
Molex 0901471108	350 V	Through Hole	Black	0.1 in	2.54 mm	105 ░C	-55 °C	40 µin	1.02 µm	0.114 in	2.9 mm	Square	1	Solder	Female Socket	0.335 "	8.51 mm	Phosphor Bronze	Tin	Polyester Glass Filled	Push-Pull	All	Automotive General Purpose Lighting Medical Telecommunications	3 A	1.02 Ám	40 Áin	Receptacle	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

C-Grid III PC Board Connector, Single Row, Vertical, 6 Circuits, Gold (Au) Plating
