MP2696AGQ-0000-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

I2C-CONTROLLED, SINGLE-CELL SWIT

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

I2C-CONTROLLED, SINGLE-CELL SWIT

Technical Specifications

Parameters and characteristics for this part

Part	Contents	Primary Attributes	Utilized IC / Part	Function	Type	Secondary Attributes	Supplied Contents	Operating Temperature [Min]	Operating Temperature [Max]	Current - Supply	Mounting Type	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications
MONOLITHIC POWER SYSTEMS (MPS) EV2696A-Q-00A	Board(s)	Li-Ion / Li-Pol (1 Cell)	MP2696A	Battery Charger	Power Management	Graphical User Interface (GUI) I2C Interface(s)	Board(s)
MONOLITHIC POWER SYSTEMS (MPS) MP2696AGQ-0000-P								-40 °C	125 ¯C	3 A	Surface Mount	21-QFN (3x3)	4.5 V	11 V
MONOLITHIC POWER SYSTEMS (MPS) EV2696A-Q-00B	Board(s)	Li-Ion / Li-Pol (1 Cell)	MP2696A	Battery Charger	Power Management	Graphical User Interface (GUI) I2C Interface(s)	Board(s)
MONOLITHIC POWER SYSTEMS (MPS) MP2696AGQ-0000-Z								-40 °C	125 ¯C	3 A	Surface Mount	21-QFN (3x3)	4.5 V	11 V
MONOLITHIC POWER SYSTEMS (MPS) MP2696BGQ-0000-P								-40 °C	125 ¯C	1 mA	Surface Mount	21-QFN (3x3)	4 V	11 V	Battery Management SmartPhones
MONOLITHIC POWER SYSTEMS (MPS) MP2696BGQ-0000-Z								-40 °C	125 ¯C	1 mA	Surface Mount	21-QFN (3x3)	4 V	11 V	Battery Management SmartPhones

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.16

General part information

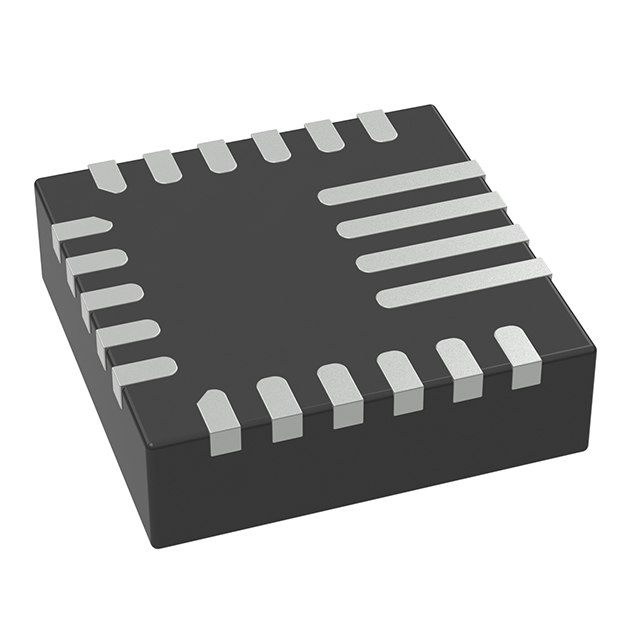

PMIC 21-QFN (3x3)
