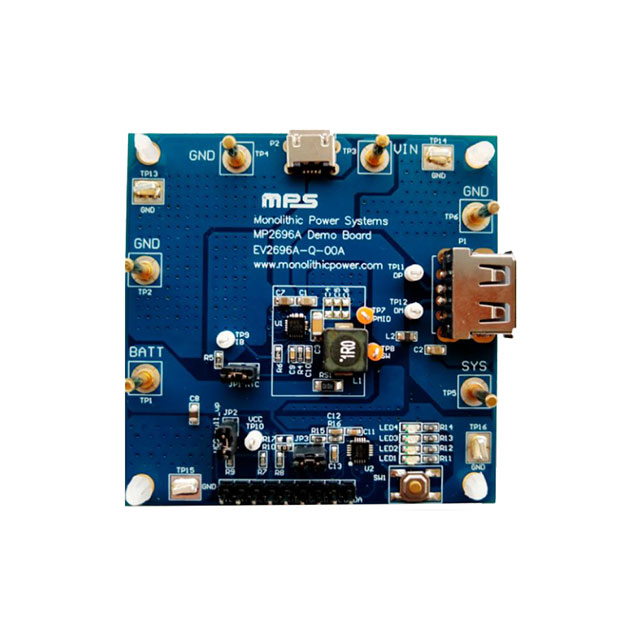

EV2696A-Q-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVALUATION BOARD MP2696A W/MCU

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVALUATION BOARD MP2696A W/MCU

Technical Specifications

Parameters and characteristics for this part

Specification	EV2696A-Q-00A

Contents	Board(s)
Embedded	True
Function	Battery Charger
Primary Attributes	Li-Ion / Li-Pol (1 Cell)
Secondary Attributes	I2C Interface(s), Graphical User Interface (GUI)
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	MP2696A

Part	Contents	Primary Attributes	Utilized IC / Part	Function	Type	Secondary Attributes	Supplied Contents	Operating Temperature [Min]	Operating Temperature [Max]	Current - Supply	Mounting Type	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications
MONOLITHIC POWER SYSTEMS (MPS) EV2696A-Q-00A	Board(s)	Li-Ion / Li-Pol (1 Cell)	MP2696A	Battery Charger	Power Management	Graphical User Interface (GUI) I2C Interface(s)	Board(s)
MONOLITHIC POWER SYSTEMS (MPS) MP2696AGQ-0000-P								-40 °C	125 ¯C	3 A	Surface Mount	21-QFN (3x3)	4.5 V	11 V
MONOLITHIC POWER SYSTEMS (MPS) EV2696A-Q-00B	Board(s)	Li-Ion / Li-Pol (1 Cell)	MP2696A	Battery Charger	Power Management	Graphical User Interface (GUI) I2C Interface(s)	Board(s)
MONOLITHIC POWER SYSTEMS (MPS) MP2696AGQ-0000-Z								-40 °C	125 ¯C	3 A	Surface Mount	21-QFN (3x3)	4.5 V	11 V
MONOLITHIC POWER SYSTEMS (MPS) MP2696BGQ-0000-P								-40 °C	125 ¯C	1 mA	Surface Mount	21-QFN (3x3)	4 V	11 V	Battery Management SmartPhones
MONOLITHIC POWER SYSTEMS (MPS) MP2696BGQ-0000-Z								-40 °C	125 ¯C	1 mA	Surface Mount	21-QFN (3x3)	4 V	11 V	Battery Management SmartPhones

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MP2696A Battery Charger Power Management Evaluation Board
