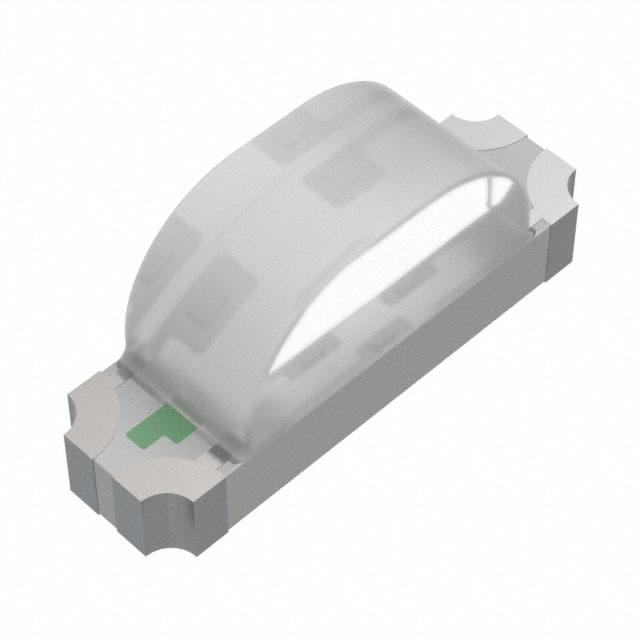

IN-S126TASRGB

Active

Inolux

LED RGB CLEAR 1206 SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IN-S126TASRGB

Active

Inolux

LED RGB CLEAR 1206 SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IN-S126TASRGB

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	1 mm
Lens Color	Colorless
Lens Size [x]	2.2 mm
Lens Size [y]	1 mm
Lens Style	Rectangle with Domed Top
Lens Transparency	Clear
Millicandela Rating	250 mcd, 200 mcd, 1100 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	4-SMD
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	1.5 mm
Supplier Device Package	1206
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) [custom]	2.8 V
Voltage - Forward (Vf) (Typ) [custom]	1.6 V
Voltage - Forward (Vf) (Typ) [custom]	2.8 V
Wavelength - Peak [custom]	625 nm
Wavelength - Peak [custom]	470 nm
Wavelength - Peak [custom]	523 nm

IN-S126 Series

Part	Orientation	Mounting Type	Radiant Intensity (Ie) Min @ If [Min]	Type	Wavelength	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max)	Viewing Angle	Voltage - Forward (Vf) (Typ)	Package / Case	Millicandela Rating	Color	Lens Color	Supplier Device Package	Lens Size [y]	Lens Size [x]	Lens Style	Height (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Configuration	Lens Transparency	Current - Test	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Current - Dark (Id) (Max) [Max]	Power - Max [Max]	Current - DC Forward (If) (Max) [Max]
Inolux IN-S126ETIR	Top View	Surface Mount	20 mW/sr	Infrared (IR)	850 nm	85 °C	-40 °C	65 mA	30 °	1.4 V	1206 (3216 Metric)
Inolux IN-S126AT5UW		Surface Mount							120 °	3 V	1206 (3216 Metric)	180 mcd	White	Colorless	1206	1.5 mm	2 mm	Rectangle with Flat Top	1.1 mm	1.5 mm	3.2 mm	Standard	Clear	5 mA
Inolux IN-S126TASRGB		Surface Mount Right Angle							120 °		4-SMD	200 mcd 250 mcd 1100 mcd	Blue Green Red	Colorless	1206	1 mm	2.2 mm	Rectangle with Domed Top	1 mm	1.5 mm	3.2 mm	Common Anode	Clear		20 mA	20 mA	20 mA	625 nm	470 nm	523 nm	2.8 V	1.6 V	2.8 V
Inolux IN-S126BTNPT	Top View	Surface Mount			940 nm	80 C	-40 °C				1206 (3216 Metric)																							30 V	20 mA	100 nA	150 mW
Inolux IN-S126ETHIR	Top View	Surface Mount	5 mW/sr	Infrared (IR)	940 nm	85 °C	-40 °C		30 °		1206 (3216 Metric)																											100 mA
Inolux IN-S126BTHIR	Top View	Surface Mount	0.85 mW/sr	Infrared (IR)	940 nm	85 °C	-40 °C	65 mA	140 °	1.4 V	1206 (3216 Metric)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.55
		10	$ 0.38
		100	$ 0.28
		500	$ 0.23
		1000	$ 0.21
	Digi-Reel®	1	$ 0.55
		10	$ 0.38
		100	$ 0.28
		500	$ 0.23
		1000	$ 0.21
	Tape & Reel (TR)	3000	$ 0.19
		6000	$ 0.18
		9000	$ 0.18
		15000	$ 0.17
		21000	$ 0.17
		30000	$ 0.16

Description

General part information

IN-S126 Series

Red, Green, Blue (RGB) LED Indication - Discrete 1.6V Red, 2.8V Green, 2.8V Blue 4-SMD
