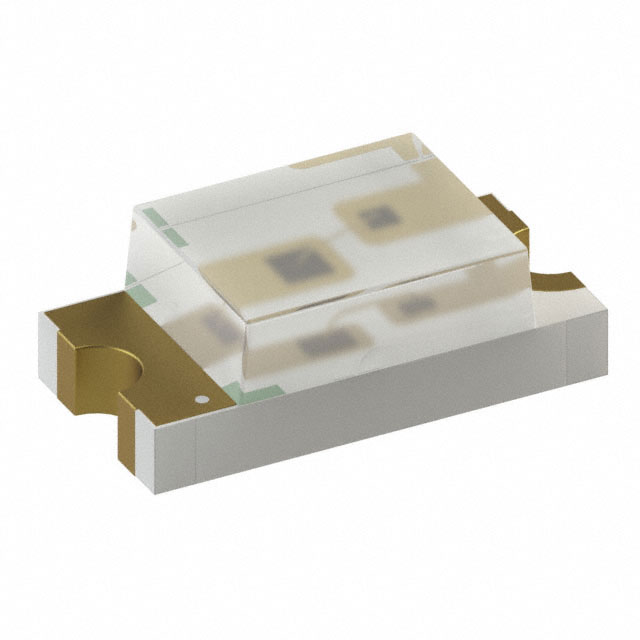

IN-S126BTHIR

Active

Inolux

TOP VIEW / 1206 / 3.2X1.6X1.1

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IN-S126BTHIR

Current - DC Forward (If) (Max)	65 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	1206 (3216 Metric)
Radiant Intensity (Ie) Min @ If [Min]	0.85 mW/sr
Type	Infrared (IR)
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	1.4 V
Wavelength	940 nm

IN-S126 Series

Part	Orientation	Mounting Type	Radiant Intensity (Ie) Min @ If [Min]	Type	Wavelength	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max)	Viewing Angle	Voltage - Forward (Vf) (Typ)	Package / Case	Millicandela Rating	Color	Lens Color	Supplier Device Package	Lens Size [y]	Lens Size [x]	Lens Style	Height (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Configuration	Lens Transparency	Current - Test	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Current - Dark (Id) (Max) [Max]	Power - Max [Max]	Current - DC Forward (If) (Max) [Max]
Inolux IN-S126ETIR	Top View	Surface Mount	20 mW/sr	Infrared (IR)	850 nm	85 °C	-40 °C	65 mA	30 °	1.4 V	1206 (3216 Metric)
Inolux IN-S126AT5UW		Surface Mount							120 °	3 V	1206 (3216 Metric)	180 mcd	White	Colorless	1206	1.5 mm	2 mm	Rectangle with Flat Top	1.1 mm	1.5 mm	3.2 mm	Standard	Clear	5 mA
Inolux IN-S126TASRGB		Surface Mount Right Angle							120 °		4-SMD	200 mcd 250 mcd 1100 mcd	Blue Green Red	Colorless	1206	1 mm	2.2 mm	Rectangle with Domed Top	1 mm	1.5 mm	3.2 mm	Common Anode	Clear		20 mA	20 mA	20 mA	625 nm	470 nm	523 nm	2.8 V	1.6 V	2.8 V
Inolux IN-S126BTNPT	Top View	Surface Mount			940 nm	80 C	-40 °C				1206 (3216 Metric)																							30 V	20 mA	100 nA	150 mW
Inolux IN-S126ETHIR	Top View	Surface Mount	5 mW/sr	Infrared (IR)	940 nm	85 °C	-40 °C		30 °		1206 (3216 Metric)																											100 mA
Inolux IN-S126BTHIR	Top View	Surface Mount	0.85 mW/sr	Infrared (IR)	940 nm	85 °C	-40 °C	65 mA	140 °	1.4 V	1206 (3216 Metric)
