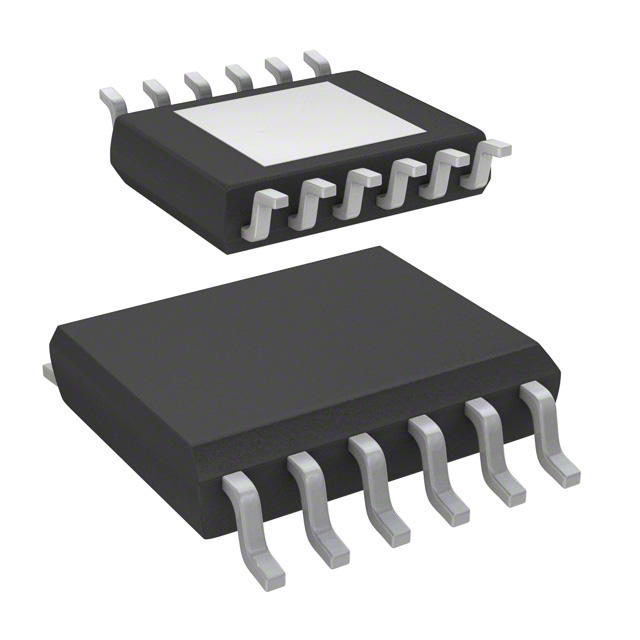

VND5E050MJ-E

Obsolete

STMicroelectronics

IC PWR DRVR N-CHAN 1:1 PWRSSO12

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VND5E050MJ-E

Obsolete

STMicroelectronics

IC PWR DRVR N-CHAN 1:1 PWRSSO12

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VND5E050MJ-E

Current - Output (Max) [Max]	19 A
Fault Protection	Over Temperature, Current Limiting (Fixed), Over Voltage
Features	Auto Restart
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	PowerSSO-12
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	50 mOhm
Supplier Device Package	PowerSSO-12™
Switch Type	General Purpose
Voltage - Load [Max]	28 V
Voltage - Load [Min]	4.5 V
Voltage - Supply (Vcc/Vdd)	False

VND5E050ACK-E Series

Double channel high side driver with analog current sense for automotive applications

Part	Output Type	Ratio - Input:Output [custom]	Fault Protection	Number of Outputs	Current - Output (Max) [Max]	Switch Type	Rds On (Typ)	Interface	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Max]	Voltage - Load [Min]	Supplier Device Package	Features	Mounting Type	Input Type	Output Configuration	Package / Case [y]	Package / Case [y]
STMicroelectronics VND5E050MJTR-E	N-Channel	1:1	Current Limiting (Fixed) Over Temperature Over Voltage	2	19 A	General Purpose	50 mOhm	On/Off	12-PowerLSOP	150 °C	-40 °C	28 V	4.5 V	PowerSSO-12™	Auto Restart	Surface Mount	Non-Inverting	High Side
STMicroelectronics VND5E050MJ-E	N-Channel	1:1	Current Limiting (Fixed) Over Temperature Over Voltage	2	19 A	General Purpose	50 mOhm	On/Off	PowerSSO-12	150 °C	-40 °C	28 V	4.5 V	PowerSSO-12™	Auto Restart	Surface Mount	Non-Inverting	High Side
STMicroelectronics VND5E050AKTR-E	N-Channel	1:1	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	2	19 A	General Purpose	50 mOhm	On/Off	24-PowerBSOP	150 °C	-40 °C	28 V	4.5 V	PowerSSO-24	Auto Restart	Surface Mount	Non-Inverting	High Side	7.5 mm	0.295 in
STMicroelectronics VND5E050MCKTR-E	N-Channel	1:1	Current Limiting (Fixed) Over Temperature Over Voltage	2	19 A	General Purpose	50 mOhm	On/Off	24-PowerBSOP	150 °C	-40 °C	28 V	4.5 V	PowerSSO-24	Auto Restart	Surface Mount	Non-Inverting	High Side	7.5 mm	0.295 in
STMicroelectronics VND5E050ACJTR-E	N-Channel	1:1	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	2	19 A	General Purpose	50 mOhm	On/Off	PowerSSO-12	150 °C	-40 °C	28 V	4.5 V	PowerSSO-12™	Auto Restart	Surface Mount	Non-Inverting	High Side
STMicroelectronics VND5E050MCJTR-E	N-Channel	1:1	Current Limiting (Fixed) Over Temperature Over Voltage	2	19 A	General Purpose	50 mOhm	On/Off	12-PowerLSOP	150 °C	-40 °C	28 V	4.5 V	PowerSSO-12™	Auto Restart	Surface Mount	Non-Inverting	High Side
STMicroelectronics VND5E050ACKTR-E	N-Channel	1:1	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	2	19 A	General Purpose	50 mOhm	On/Off	24-PowerBSOP	150 °C	-40 °C	28 V	4.5 V	PowerSSO-24	Auto Restart	Surface Mount	Non-Inverting	High Side	7.5 mm	0.295 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VND5E050ACK-E Series

The VND5E050ACJ-E and VND5E050ACK-E are double channel high-side drivers manufactured using ST proprietary VIPower®M0-5 technology and housed in PowerSSO-12 and PowerSSO-24 packages. The devices are designed to drive 12 V automotive grounded loads, and to provide protection and diagnostics. They also implement a 3 V and 5 V CMOS-compatible interface for use with any microcontroller.

The devices integrate advanced protective functions such as load current limitation, inrush and overload active management by power limitation, overtemperature shut-off withauto-restart and overvoltage active clamp. A dedicated analog current sense pin is associated with every output channel providing enhanced diagnostic functions including fast detection of overload and short-circuit to ground through power limitation indication, overtemperature indication, short-circuit to VCCdiagnosis on-state and off-state open-load detection.

The current sensing and diagnostic feedback of the whole device can be disabled by pulling the CS_DIS pin high to share the external sense resistor with similar devices.
