EDZ1710/7
ActiveOn Shore Technology Inc.

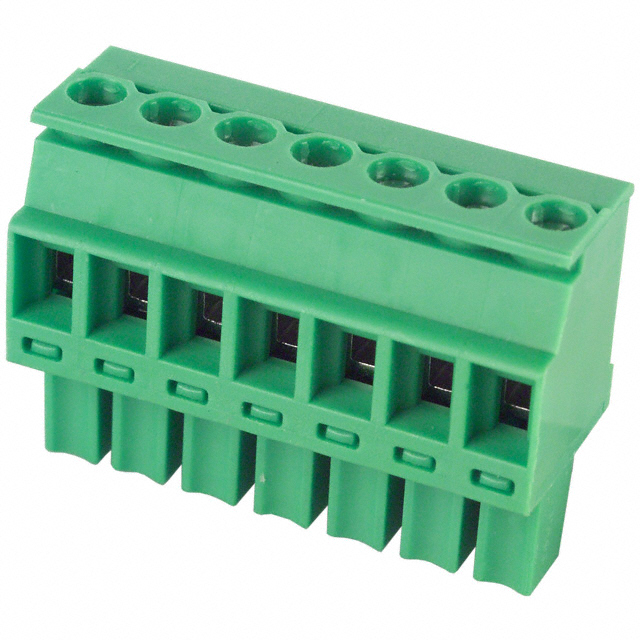

TERM BLOCK PLUG 7POS 3.81MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EDZ1710/7
ActiveOn Shore Technology Inc.
TERM BLOCK PLUG 7POS 3.81MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EDZ1710/7 |
|---|---|
| Color | Green |
| Contact Material | Copper Tin Alloy |
| Housing Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 7 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.15 in |
| Pitch [x] | 3.81 mm |
| Positions Per Level | 7 |
| Termination Style | Screw |
| Torque - Screw | 0.4 Nm |
| Torque - Screw | 3.5 Lb-In |
| Type | Plug, Female Sockets |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG [Max] | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 16 AWG |
| Wire Gauge or Range - mm˛ | 1.5 mm˛ |
| Wire Strip Length | 7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.56 | |
| 10 | $ 3.15 | |||
| 25 | $ 2.87 | |||
| 50 | $ 2.71 | |||
| 100 | $ 2.60 | |||
| 250 | $ 2.49 | |||
| 500 | $ 2.43 | |||
| 1000 | $ 2.39 | |||
Description
General part information
EDZ1710 Series
7 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) Free Hanging (In-Line)
