EDZ1710/14

Active

On Shore Technology Inc.

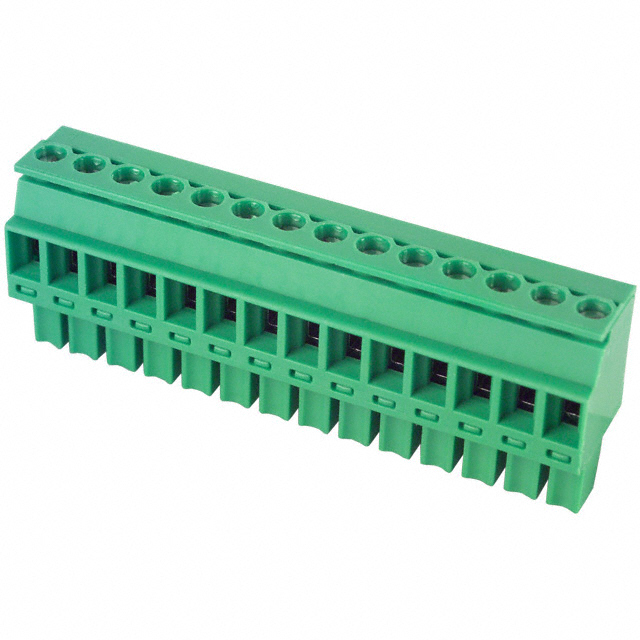

TERM BLOCK PLUG 14POS 3.81MM

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLOCK PLUG 14POS 3.81MM

Technical Specifications

Parameters and characteristics for this part

Part	Housing Material	Mounting Type	Voltage - UL	Wire Strip Length	Contact Material	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm²	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Number of Positions	Color	Type	Positions Per Level	Pitch [x]	Pitch [x]	Wire Gauge or Range - mm˛	Number of Positions
On Shore Technology Inc. EDZ1710/14	Polyamide (PA) Nylon	Free Hanging (In-Line)	300 V	7 mm	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	1.5 mm²	28 AWG	16 AWG	1	-30 ░C	105 ░C	Screw	14	Green	Plug Female Sockets	14	0.15 in	3.81 mm
On Shore Technology Inc. EDZ1710/7	Polyamide (PA) Nylon	Free Hanging (In-Line)	300 V	7 mm	Copper Tin Alloy	0.4 Nm	3.5 Lb-In		28 AWG	16 AWG	1	-30 ░C	105 ░C	Screw	7	Green	Plug Female Sockets	7	0.15 in	3.81 mm	1.5 mm˛
On Shore Technology Inc. EDZ1710/2	Polyamide (PA) Nylon	Free Hanging (In-Line)	300 V	7 mm	Copper Tin Alloy	0.4 Nm	3.5 Lb-In		28 AWG	16 AWG	1	-30 ░C	105 ░C	Screw	2	Green	Plug Female Sockets	2	0.15 in	3.81 mm	1.5 mm˛
On Shore Technology Inc. EDZ1710/20	Polyamide (PA) Nylon	Free Hanging (In-Line)	300 V	7 mm	Copper Tin Alloy	0.4 Nm	3.5 Lb-In	1.5 mm²	28 AWG	16 AWG	1	-30 ░C	105 ░C	Screw	20	Green	Plug Female Sockets	20	0.15 in	3.81 mm
On Shore Technology Inc. EDZ1710/16	Polyamide (PA) Nylon	Free Hanging (In-Line)	300 V	7 mm	Copper Tin Alloy	0.4 Nm	3.5 Lb-In		28 AWG	16 AWG	1	-30 ░C	105 ░C	Screw		Green	Plug Female Sockets	16	0.15 in	3.81 mm	1.5 mm˛	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 7.17

General part information

14 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) Free Hanging (In-Line)
