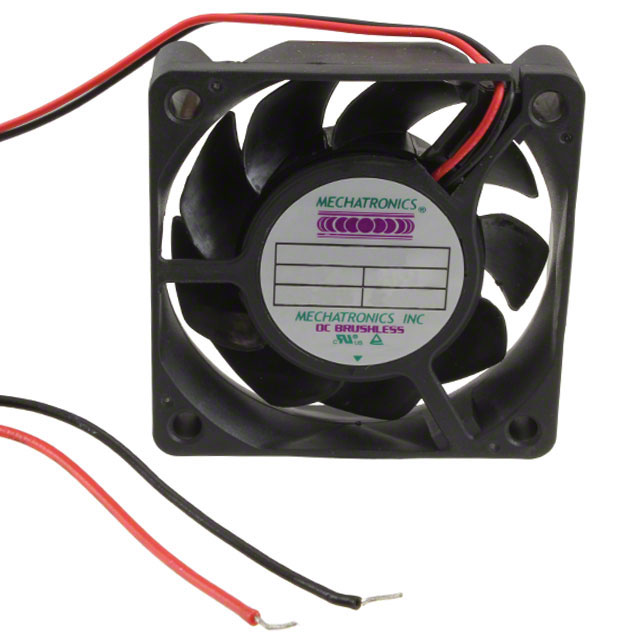

G6015H24B-RHR

Active

Mechatronics Bearing Group

FAN AXIAL 60X15MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC/DC Fans & Blowers Catalog Datasheet

G6015H24B-RHR

Active

Mechatronics Bearing Group

FAN AXIAL 60X15MM 24VDC WIRE

Deep-Dive with AI

DocumentsAC/DC Fans & Blowers Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G6015H24B-RHR

Air Flow	18 CFM
Air Flow	0.504 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	100 mA
Fan Type	Tubeaxial
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	33 dB(A)
RPM	4600 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.21 in H2O
Static Pressure	52.3 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	0.111 lb
Weight	50.35 g
Width [x]	15 mm

G6015 Series

Part	Fan Type	Approval Agency	Ingress Protection	Voltage - Rated	RPM	Static Pressure	Static Pressure	Features	Noise	Size / Dimension [x]	Size / Dimension [y]	Air Flow	Air Flow	Termination	Weight	Weight	Bearing Type	Width [x]	Material - Blade	Current Rating (Amps)
Mechatronics Bearing Group G6015X24B2-AGR-EM	Tubeaxial	CE cUL TUV UL	IP57 - Dust Protected Waterproof	24 VDC	5800 RPM	72.2 Pa	0.29 in H2O	Locked Rotor Sensor Thermal Overload Protector (TOP)	35 dB	60 mm	60 mm	24 CFM	0.672 mł/min	3 Wire Leads	26.76 g	0.059 lb	Ball	15.3 mm	Polybutylene Terephthalate (PBT)
Mechatronics Bearing Group G6015M12B1+6-RHR	Tubeaxial	CE cUL TUV UL		12 VDC	4000 RPM	42.3 Pa	0.17 in H2O	PWM Control Speed Sensor (Tach)	30 dB(A)	60 mm	60 mm	16 CFM	0.448 mł/min	4 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)	120 mA
Mechatronics Bearing Group G6015S12B2-RHR	Tubeaxial	CE cUL TUV UL		12 VDC	2800 RPM	24.9 Pa	0.1 in H2O	Locked Rotor Sensor	22 dB(A)	60 mm	60 mm	12 CFM	0.336 mł/min	3 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)
Mechatronics Bearing Group G6015X12B-RHR-L18	Tubeaxial	CE cUL TUV UL		12 VDC	5800 RPM	74.7 Pa	0.3 in H2O		39 dB(A)	60 mm	60 mm	22 CFM	0.616 m³/min	2 Wire Leads	50.35 g	0.111 lb	Ball	15 mm		0.25 A
Mechatronics Bearing Group G6015E24B-AGR-EM	Tubeaxial	CE cUL TUV UL	IP57 - Dust Protected Waterproof	24 VDC	5200 RPM	64.8 Pa	0.26 in H2O	Thermal Overload Protector (TOP)	36 dB	60 mm	60 mm	20 CFM	0.56 m³/min	2 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)
Mechatronics Bearing Group G6015H12B-RHR	Tubeaxial	CE cUL TUV UL		12 VDC	4600 RPM	52.3 Pa	0.21 in H2O		33 dB(A)	60 mm	60 mm	18 CFM	0.504 m³/min	2 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)	150 mA
Mechatronics Bearing Group G6015E24B-RHR-EM	Tubeaxial	CE cUL TUV UL	IP57 - Dust Protected Waterproof	24 VDC	5200 RPM	64.8 Pa	0.26 in H2O		36 dB	60 mm	60 mm	20 CFM	0.56 m³/min	2 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)
Mechatronics Bearing Group G6015H12B1-RGR-EM	Tubeaxial	CE cUL TUV UL	IP57 - Dust Protected Waterproof	12 VDC	4600 RPM	52.3 Pa	0.21 in H2O	Speed Sensor (Tach) Thermal Overload Protector (TOP)	33 dB(A)	60 mm	60 mm	18 CFM	0.504 m³/min	3 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)	150 mA
Mechatronics Bearing Group G6015H24B-RHR	Tubeaxial	CE cUL TUV UL		24 VDC	4600 RPM	52.3 Pa	0.21 in H2O		33 dB(A)	60 mm	60 mm	18 CFM	0.504 m³/min	2 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)	100 mA
Mechatronics Bearing Group G6015H12B1-RHR-TTL	Tubeaxial	CE cUL TUV UL		12 VDC	4600 RPM	52.3 Pa	0.21 in H2O	Speed Sensor (Tach)	33 dB(A)	60 mm	60 mm	18 CFM	0.504 m³/min	3 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)	150 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.00

Description

General part information

G6015 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 18.0 CFM (0.504m³/min) 2 Wire Leads

Documents

Technical documentation and resources

AC/DC Fans & Blowers Catalog

Datasheet
