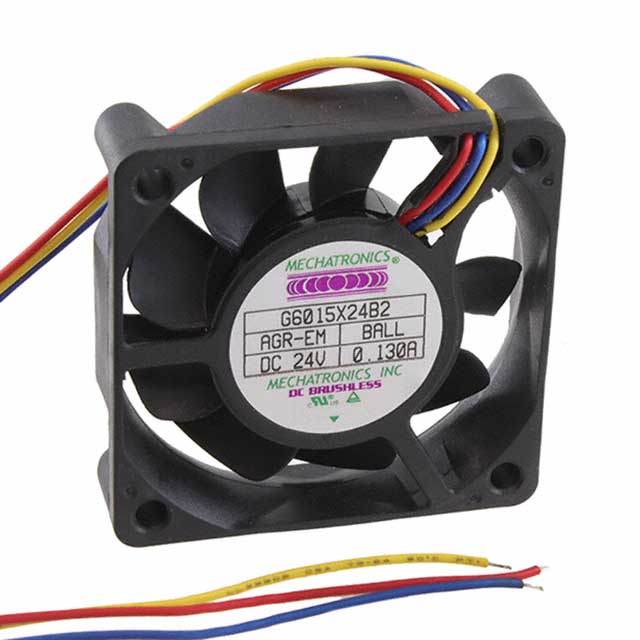

G6015X24B2-AGR-EM

Active

Mechatronics Bearing Group

FAN AXIAL 60X15.3MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DC Lead Wire Specs +1

G6015X24B2-AGR-EM

Active

Mechatronics Bearing Group

FAN AXIAL 60X15.3MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet DC Lead Wire Specs +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G6015X24B2-AGR-EM

Air Flow	24 CFM
Air Flow	0.672 mł/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Sensor, Thermal Overload Protector (TOP)
Ingress Protection	IP57 - Dust Protected, Waterproof
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	35 dB
RPM	5800 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	72.2 Pa
Static Pressure	0.29 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Weight	26.76 g
Weight	0.059 lb
Width [x]	15.3 mm

G6015 Series

Part	Fan Type	Approval Agency	Ingress Protection	Voltage - Rated	RPM	Static Pressure	Static Pressure	Features	Noise	Size / Dimension [x]	Size / Dimension [y]	Air Flow	Air Flow	Termination	Weight	Weight	Bearing Type	Width [x]	Material - Blade	Current Rating (Amps)
Mechatronics Bearing Group G6015X24B2-AGR-EM	Tubeaxial	CE cUL TUV UL	IP57 - Dust Protected Waterproof	24 VDC	5800 RPM	72.2 Pa	0.29 in H2O	Locked Rotor Sensor Thermal Overload Protector (TOP)	35 dB	60 mm	60 mm	24 CFM	0.672 mł/min	3 Wire Leads	26.76 g	0.059 lb	Ball	15.3 mm	Polybutylene Terephthalate (PBT)
Mechatronics Bearing Group G6015M12B1+6-RHR	Tubeaxial	CE cUL TUV UL		12 VDC	4000 RPM	42.3 Pa	0.17 in H2O	PWM Control Speed Sensor (Tach)	30 dB(A)	60 mm	60 mm	16 CFM	0.448 mł/min	4 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)	120 mA
Mechatronics Bearing Group G6015S12B2-RHR	Tubeaxial	CE cUL TUV UL		12 VDC	2800 RPM	24.9 Pa	0.1 in H2O	Locked Rotor Sensor	22 dB(A)	60 mm	60 mm	12 CFM	0.336 mł/min	3 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)
Mechatronics Bearing Group G6015X12B-RHR-L18	Tubeaxial	CE cUL TUV UL		12 VDC	5800 RPM	74.7 Pa	0.3 in H2O		39 dB(A)	60 mm	60 mm	22 CFM	0.616 m³/min	2 Wire Leads	50.35 g	0.111 lb	Ball	15 mm		0.25 A
Mechatronics Bearing Group G6015E24B-AGR-EM	Tubeaxial	CE cUL TUV UL	IP57 - Dust Protected Waterproof	24 VDC	5200 RPM	64.8 Pa	0.26 in H2O	Thermal Overload Protector (TOP)	36 dB	60 mm	60 mm	20 CFM	0.56 m³/min	2 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)
Mechatronics Bearing Group G6015H12B-RHR	Tubeaxial	CE cUL TUV UL		12 VDC	4600 RPM	52.3 Pa	0.21 in H2O		33 dB(A)	60 mm	60 mm	18 CFM	0.504 m³/min	2 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)	150 mA
Mechatronics Bearing Group G6015E24B-RHR-EM	Tubeaxial	CE cUL TUV UL	IP57 - Dust Protected Waterproof	24 VDC	5200 RPM	64.8 Pa	0.26 in H2O		36 dB	60 mm	60 mm	20 CFM	0.56 m³/min	2 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)
Mechatronics Bearing Group G6015H12B1-RGR-EM	Tubeaxial	CE cUL TUV UL	IP57 - Dust Protected Waterproof	12 VDC	4600 RPM	52.3 Pa	0.21 in H2O	Speed Sensor (Tach) Thermal Overload Protector (TOP)	33 dB(A)	60 mm	60 mm	18 CFM	0.504 m³/min	3 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)	150 mA
Mechatronics Bearing Group G6015H24B-RHR	Tubeaxial	CE cUL TUV UL		24 VDC	4600 RPM	52.3 Pa	0.21 in H2O		33 dB(A)	60 mm	60 mm	18 CFM	0.504 m³/min	2 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)	100 mA
Mechatronics Bearing Group G6015H12B1-RHR-TTL	Tubeaxial	CE cUL TUV UL		12 VDC	4600 RPM	52.3 Pa	0.21 in H2O	Speed Sensor (Tach)	33 dB(A)	60 mm	60 mm	18 CFM	0.504 m³/min	3 Wire Leads	50.35 g	0.111 lb	Ball	15 mm	Polybutylene Terephthalate (PBT)	150 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.01
		10	$ 16.24
		25	$ 15.27
		50	$ 14.69
		100	$ 13.53
		250	$ 12.66
		500	$ 12.47

Description

General part information

G6015 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 24.0 CFM (0.672m³/min) 3 Wire Leads
