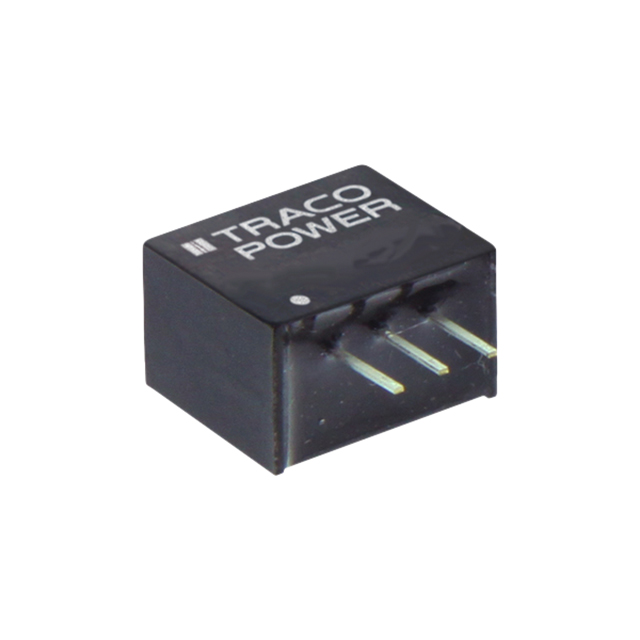

TSRN 1-24150

Unknown

Traco Power

DC DC CONVERTER 15V 15W

Search across all available documentation for this part.

Unknown

Traco Power

DC DC CONVERTER 15V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	TSRN 1-24150

Applications	ITE (Commercial)
Current - Output (Max) [Max]	1 A
Efficiency	95 %
Features	OTP, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Power (Watts)	15 W
Size / Dimension [x]	0.46 in
Size / Dimension [x]	11.7 mm
Size / Dimension [y]	0.3 "
Size / Dimension [y]	7.5 mm
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	16.5 V
Voltage - Output 1	15 V

Part	Number of Outputs	Voltage - Output 1	Voltage - Input (Max) [Max]	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Power (Watts)	Package / Case	Current - Output (Max) [Max]	Features	Voltage - Input (Min) [Min]
Traco Power TSRN 1-24150	1	15 V	36 V	Linear Regulator Replacement	Through Hole	85 °C	-40 °C	ITE (Commercial)	10.2 mm	0.46 in	0.3 "	0.4 "	11.7 mm	7.5 mm	95 %	15 W	3-SIP Module	1 A	OTP SCP	16.5 V
Traco Power TSRN 1-0525SM	1	2.5 V	5.5 V	Linear Regulator Replacement	Surface Mount	85 °C	-40 °C	ITE (Commercial)	7.4 mm	0.6 in	0.37 "	0.29 "	15.2 mm	9.3 mm	95.5 %		10-SMD Module 6 Leads	1 A	OTP Remote On/Off SCP	3 V
Traco Power TSRN 1-24120A	1	12 V	36 V	Linear Regulator Replacement	Through Hole	85 °C	-40 °C	ITE (Commercial)	7.5 mm	0.46 in	0.4 in	0.3 "	11.7 mm	10.2 mm	95 %	12 W	3-SIP Module	1 A	OTP SCP	13.5 V
Traco Power TSRN 1-2415	1	1.5 V	36 V	Linear Regulator Replacement	Through Hole	85 °C	-40 °C	ITE (Commercial)	10.2 mm	0.46 in	0.3 "	0.4 "	11.7 mm	7.5 mm	77 %	1.5 W	3-SIP Module	1 A	OTP SCP	4.6 V
Traco Power TSRN 1-24120	1	12 V	36 V	Linear Regulator Replacement	Through Hole	85 °C	-40 °C	ITE (Commercial)	10.2 mm	0.46 in	0.3 "	0.4 "	11.7 mm	7.5 mm	95 %	12 W	3-SIP Module	1 A	OTP SCP	13.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Regulator Replacement DC DC Converter 1 Output 15V 1A 16.5V - 36V Input
