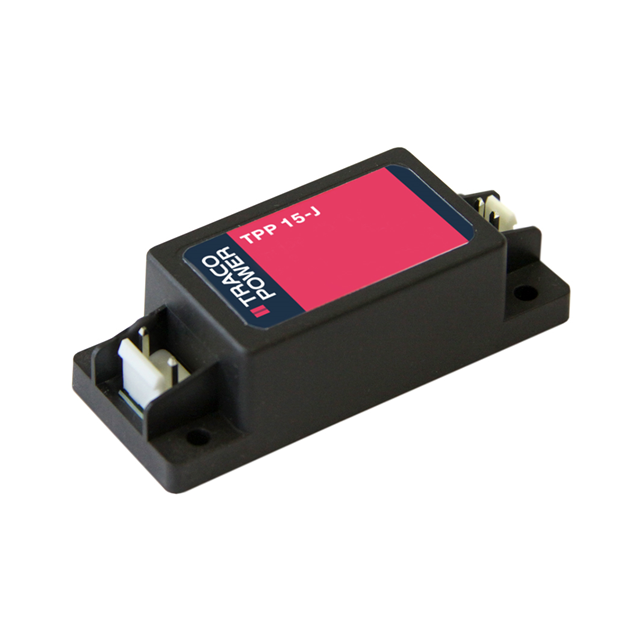

TPP 15-109-J
ActiveTraco Power
AC/DC CONVERTER 9V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPP 15-109-J
ActiveTraco Power
AC/DC CONVERTER 9V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPP 15-109-J |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 1.67 A |
| Efficiency | 86 % |
| Features | Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 2.82 " |
| Size / Dimension [x] | 71.6 mm |
| Size / Dimension [y] | 1.14 " |
| Size / Dimension [y] | 28.9 mm |
| Size / Dimension [z] | 0.82 in |
| Size / Dimension [z] | 20.9 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 42.70 | |
| 10 | $ 39.21 | |||
| 25 | $ 37.90 | |||
| 50 | $ 36.94 | |||
| 100 | $ 36.00 | |||
| 250 | $ 34.80 | |||
| 500 | $ 30.86 | |||
Description
General part information
TPP 15 Series
Switching Power Supplies
