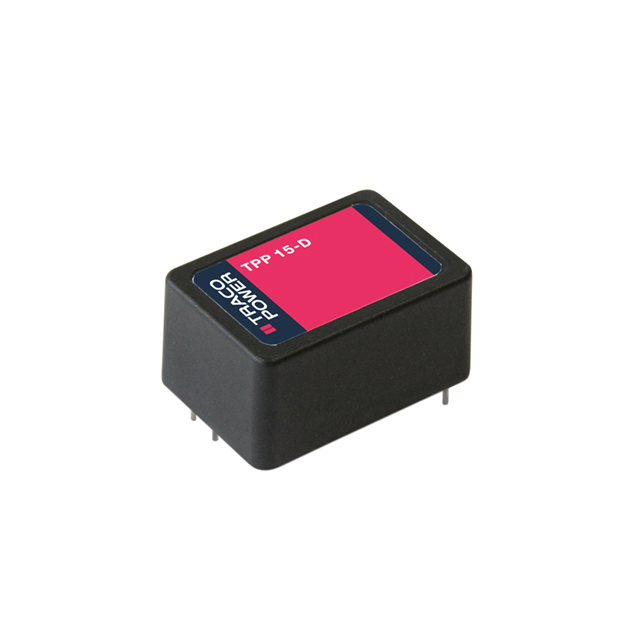

TPP 15-136-D
ActiveTraco Power
AC/DC CONVERTER 36V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPP 15-136-D
ActiveTraco Power
AC/DC CONVERTER 36V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPP 15-136-D |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | CB, cURus, CE |
| Efficiency | 88 % |
| Features | Adjustable Output, Universal Input |
| Load Regulation | 0.5 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 15 W |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Output 1 | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 40.06 | |
| 10 | $ 36.78 | |||
| 25 | $ 35.55 | |||
| 50 | $ 34.65 | |||
| 100 | $ 33.77 | |||
| 250 | $ 32.65 | |||
| 500 | $ 28.89 | |||
Description
General part information
TPP 15 Series
Switching Power Supplies
