302-28-20-GR-0250F

Active

CnC Tech, LLC

CBL RIBN 20COND 0.05 GRAY 10'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IDC, Flat Ribbon Cable Mating Chart

302-28-20-GR-0250F

Active

CnC Tech, LLC

CBL RIBN 20COND 0.05 GRAY 10'

Deep-Dive with AI

DocumentsDatasheet IDC, Flat Ribbon Cable Mating Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	302-28-20-GR-0250F

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1 ft, 25 ft, 50 ft, 3000 "
Length	304.8 mm, 7.62 m, 15.24 m, 76.2 m
Length [x]	3.05 m
Length [x]	10 ft
Number of Conductors	20
Operating Temperature	105 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width	1 in
Ribbon Width	25.4 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

302-28 Series

Part	Ratings	Ribbon Width	Ribbon Width	Number of Conductors	Insulation Resistance	Wire Gauge	Voltage	Jacket Color	Cable Type	Jacket (Insulation) Material	Pitch [x]	Pitch [x]	First Conductor Mark	Ribbon Thickness	Ribbon Thickness	Conductor Material	Length	Length	Shielding	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature	Ribbon Width [custom]	Ribbon Width [custom]	Length [x]	Length [x]	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width
CnC Tech, LLC 302-28-26-GR-0300F	UL Style 2651	1.3 "	33.02 mm	26	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned	91.44 m	300 ft	Unshielded	7	36 AWG	105 C
CnC Tech, LLC 302-28-50-GR-0300F	UL Style 2651	2.5 "	63.5 mm	50	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned	91.44 m	300 ft	Unshielded	7	36 AWG	105 C
CnC Tech, LLC 302-28-10-GR-0100F	UL Style 2651			10	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned			Unshielded	7	36 AWG	105 C	0.5 "	12.7 mm	100 ft	30.48 m
CnC Tech, LLC 302-28-06-GR-0300F	UL Style 2651			6	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned	91.44 m	300 ft	Unshielded	7	36 AWG	105 C
CnC Tech, LLC 302-28-04-GR-0100F	UL Style 2651			4	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned			Unshielded	7	36 AWG	105 C			100 ft	30.48 m
CnC Tech, LLC 302-28-25-GR-0300F	UL Style 2651			25	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned	91.44 m	300 ft	Unshielded	7	36 AWG	105 C					1.25 "	31.75 mm
CnC Tech, LLC 302-28-10-GR-0250F	UL Style 2651			10	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned	7.62 m 76.2 m 304.8 mm	1 ft 25 ft 3000 "	Unshielded	7	36 AWG	105 C	0.5 "	12.7 mm	10 ft	3.05 m
CnC Tech, LLC 302-28-26-GR-0100F	UL Style 2651	1.3 "	33.02 mm	26	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned			Unshielded	7	36 AWG	105 C			100 ft	30.48 m
CnC Tech, LLC 302-28-09-GR-0300F	UL Style 2651	0.45 in	11.43 mm	9	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned	91.44 m	300 ft	Unshielded	7	36 AWG	105 C
CnC Tech, LLC 302-28-20-GR-0250F	UL Style 2651		1 in	20	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned	7.62 m 15.24 m 76.2 m 304.8 mm	1 ft 25 ft 50 ft 3000 "	Unshielded	7	36 AWG	105 C			10 ft	3.05 m			25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.01
		1	$ 3.08
		2	$ 5.73
		5	$ 5.37
		5	$ 2.75
		10	$ 2.62
		10	$ 5.09
		20	$ 4.84
		25	$ 2.46
		50	$ 2.33
		50	$ 4.54
		100	$ 4.34
		100	$ 2.21
		200	$ 4.12
		250	$ 2.08
		500	$ 3.87
		500	$ 1.99
		1000	$ 1.89
	Spool	1	$ 19.55
		1	$ 54.37
		1	$ 9.61
		2	$ 18.57
		2	$ 49.30
		3	$ 46.54
		3	$ 9.01
		4	$ 17.70
		5	$ 43.28
		5	$ 8.54
		7	$ 41.26
		10	$ 8.13
		10	$ 39.22
		10	$ 16.63
		20	$ 15.76
		25	$ 34.45
		25	$ 7.61
		40	$ 15.07
		50	$ 31.24
		50	$ 7.29
		100	$ 6.92
		100	$ 14.10
		100	$ 28.37
		200	$ 13.42
		250	$ 6.50
		250	$ 0.63
		400	$ 12.74
		500	$ 6.18
		500	$ 0.57
		750	$ 0.54
		1250	$ 0.51
		1750	$ 0.48
		2500	$ 0.46
		6250	$ 0.42

Description

General part information

302-28 Series

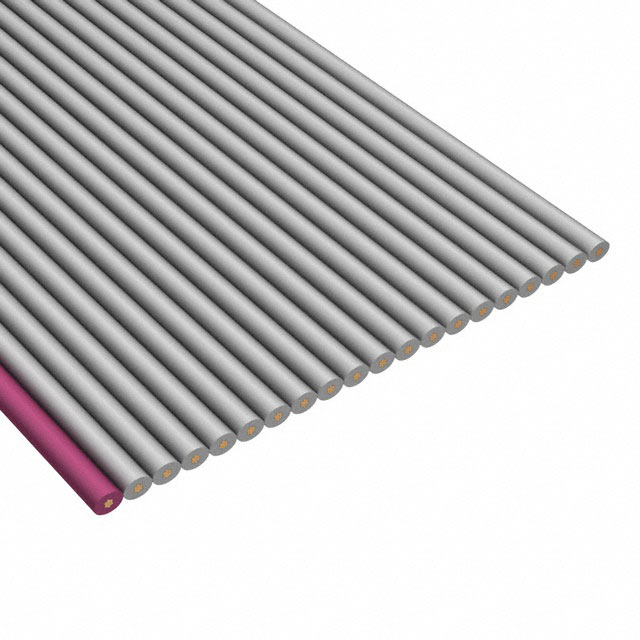

Flat Ribbon Cable Gray 20 Conductors 0.050" (1.27mm) Flat Cable 10.0' (3.05m)
