302-28-25-GR-0300F

Obsolete

CnC Tech, LLC

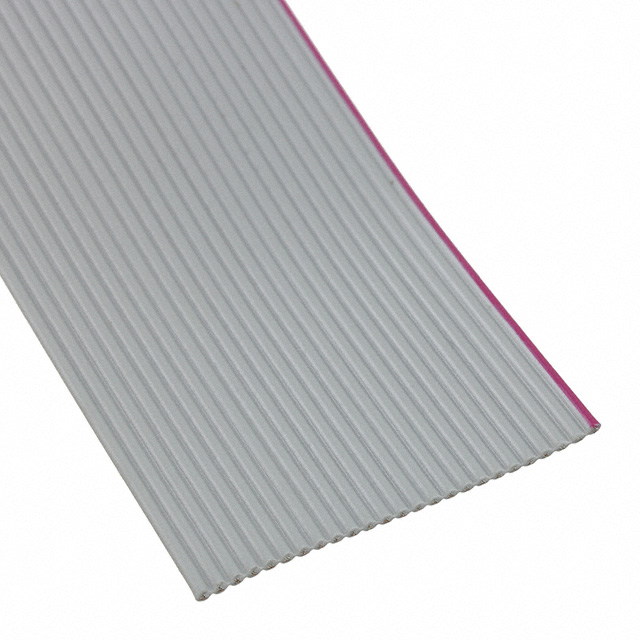

CBL RIBN 25COND 0.05 GRAY 300'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

302-28-25-GR-0300F

Obsolete

CnC Tech, LLC

CBL RIBN 25COND 0.05 GRAY 300'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	302-28-25-GR-0300F

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	91.44 m
Length	300 ft
Number of Conductors	25
Operating Temperature	105 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [x]	1.25 "
Ribbon Width [x]	31.75 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

302-28 Series

Part	Ratings	Ribbon Width	Ribbon Width	Number of Conductors	Insulation Resistance	Wire Gauge	Voltage	Jacket Color	Cable Type	Jacket (Insulation) Material	Pitch [x]	Pitch [x]	First Conductor Mark	Ribbon Thickness	Ribbon Thickness	Conductor Material	Length	Length	Shielding	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature	Ribbon Width [custom]	Ribbon Width [custom]	Length [x]	Length [x]	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width
CnC Tech, LLC 302-28-26-GR-0300F	UL Style 2651	1.3 "	33.02 mm	26	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned	91.44 m	300 ft	Unshielded	7	36 AWG	105 C
CnC Tech, LLC 302-28-50-GR-0300F	UL Style 2651	2.5 "	63.5 mm	50	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned	91.44 m	300 ft	Unshielded	7	36 AWG	105 C
CnC Tech, LLC 302-28-10-GR-0100F	UL Style 2651			10	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned			Unshielded	7	36 AWG	105 C	0.5 "	12.7 mm	100 ft	30.48 m
CnC Tech, LLC 302-28-06-GR-0300F	UL Style 2651			6	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned	91.44 m	300 ft	Unshielded	7	36 AWG	105 C
CnC Tech, LLC 302-28-04-GR-0100F	UL Style 2651			4	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned			Unshielded	7	36 AWG	105 C			100 ft	30.48 m
CnC Tech, LLC 302-28-25-GR-0300F	UL Style 2651			25	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned	91.44 m	300 ft	Unshielded	7	36 AWG	105 C					1.25 "	31.75 mm
CnC Tech, LLC 302-28-10-GR-0250F	UL Style 2651			10	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned	7.62 m 76.2 m 304.8 mm	1 ft 25 ft 3000 "	Unshielded	7	36 AWG	105 C	0.5 "	12.7 mm	10 ft	3.05 m
CnC Tech, LLC 302-28-26-GR-0100F	UL Style 2651	1.3 "	33.02 mm	26	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned			Unshielded	7	36 AWG	105 C			100 ft	30.48 m
CnC Tech, LLC 302-28-09-GR-0300F	UL Style 2651	0.45 in	11.43 mm	9	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned	91.44 m	300 ft	Unshielded	7	36 AWG	105 C
CnC Tech, LLC 302-28-20-GR-0250F	UL Style 2651		1 in	20	100 MOhms	28 AWG	300 V	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Copper Tinned	7.62 m 15.24 m 76.2 m 304.8 mm	1 ft 25 ft 50 ft 3000 "	Unshielded	7	36 AWG	105 C			10 ft	3.05 m			25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

302-28 Series

Flat Ribbon Cable Gray 25 Conductors 0.050" (1.27mm) Flat Cable 300.0' (91.44m)
