76054-00000600-01
ActiveHoneywell Sensing and Productivity Solutions

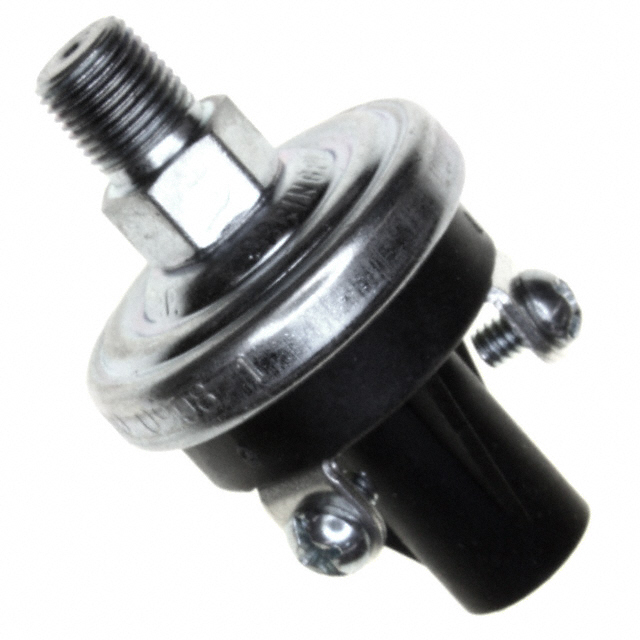

SWITCH PRESSURE N.O. 60PSI
Deep-Dive with AI
Search across all available documentation for this part.
76054-00000600-01
ActiveHoneywell Sensing and Productivity Solutions
SWITCH PRESSURE N.O. 60PSI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 76054-00000600-01 |
|---|---|
| Applications | Industrial Automation |
| Maximum Pressure [Max] | 500 PSI |
| Maximum Pressure [Max] | 3447.38 kPa |
| Operating Pressure | 60 PSI |
| Operating Pressure | 413.69 kPa |
| Operating Temperature [Max] | 121 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | SPST-NO |
| Package / Case | Cylinder |
| Port Size | 0.125 " |
| Port Size | 3.18 mm |
| Port Size | Male |
| Port Style | Threaded |
| Pressure Type | Switch |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 63.07 | |
| 5 | $ 58.40 | |||
| 10 | $ 56.66 | |||
| 25 | $ 55.04 | |||
Description
General part information
76054 Series
SWITCH PRESSURE N.O. 60PSI
Documents
Technical documentation and resources
