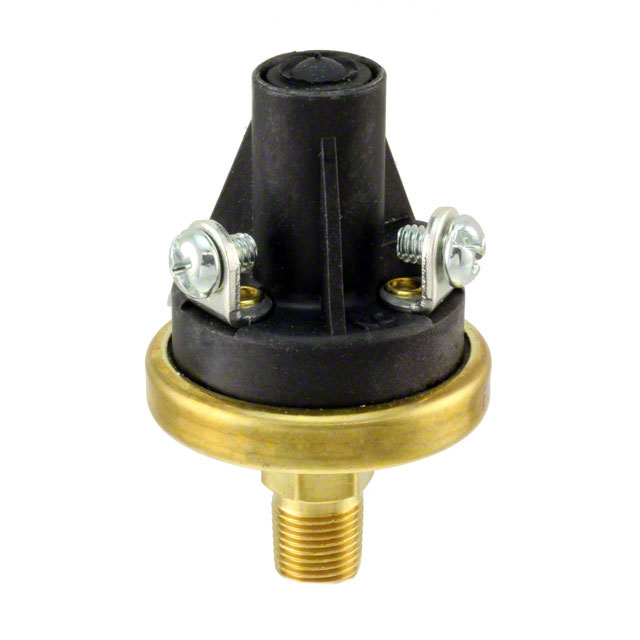

76054-B00000600-01

Active

Honeywell Sensing and Productivity Solutions

SWITCH PRESSURE N.O. 60PSI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Thermal Sensors Range Guide +1

76054-B00000600-01

Active

Honeywell Sensing and Productivity Solutions

SWITCH PRESSURE N.O. 60PSI

Deep-Dive with AI

DocumentsDatasheet Thermal Sensors Range Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	76054-B00000600-01

Applications	Industrial Automation
Maximum Pressure [Max]	500 PSI
Maximum Pressure [Max]	3447.38 kPa
Operating Pressure	60 PSI
Operating Pressure	413.69 kPa
Operating Temperature [Max]	121 °C
Operating Temperature [Min]	-40 °C
Output Type	SPST-NO
Package / Case	Cylinder, Threaded
Port Size	0.125 "
Port Size	3.18 mm
Port Size	Male
Port Style	Threaded
Pressure Type	Switch
Termination Style	Screw Terminal

76054 Series

Part	Port Style	Pressure Type	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Port Size	Port Size	Port Size	Package / Case	Output Type	Operating Pressure	Operating Pressure	Applications
Honeywell Sensing and Productivity Solutions 76054-00000600-04	Threaded	Switch	351.63 kPa	90 PSI	620.53 kPa	51 PSI	Screw Terminal	500 PSI	3447.38 kPa	-40 °C	121 °C	0.125 "	3.18 mm	Male	Cylinder Threaded	SPST-NO
Honeywell Sensing and Productivity Solutions 76054-00000800-01
Honeywell Sensing and Productivity Solutions 76054-B00000600-01	Threaded	Switch					Screw Terminal	500 PSI	3447.38 kPa	-40 °C	121 °C	0.125 "	3.18 mm	Male	Cylinder Threaded	SPST-NO	60 PSI	413.69 kPa	Industrial Automation
Honeywell Sensing and Productivity Solutions 76054-00000600-01	Threaded	Switch					Screw Terminal	500 PSI	3447.38 kPa	-40 °C	121 °C	0.125 "	3.18 mm	Male	Cylinder	SPST-NO	60 PSI	413.69 kPa	Industrial Automation
Honeywell Sensing and Productivity Solutions 76054-B00000800-01	Threaded	Switch	351.63 kPa	90 PSI	620.53 kPa	51 PSI	Screw Terminal	500 PSI	3447.38 kPa	-40 °C	121 °C	0.125 "	3.18 mm	Male	Cylinder Threaded	SPST-NO
Honeywell Sensing and Productivity Solutions 76054-00000650-01	Threaded	Switch	351.63 kPa	90 PSI	620.53 kPa	51 PSI	Screw Terminal	500 PSI	3447.38 kPa	-40 °C	121 °C	0.125 "	3.18 mm	Male	Cylinder Threaded	SPST-NO
Honeywell Sensing and Productivity Solutions 76054-00000770-05	Threaded	Switch	351.63 kPa	90 PSI	620.53 kPa	51 PSI	Screw Terminal	500 PSI	3447.38 kPa	-40 °C	121 °C	0.125 "	3.18 mm	Male	Cylinder Threaded	SPST-NO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 96.99
		5	$ 81.81
		10	$ 76.03
		25	$ 69.02
		50	$ 68.12

Description

General part information

76054 Series

SWITCH PRESSURE N.O. 60PSI

Documents

Technical documentation and resources

Datasheet

Thermal Sensors Range Guide

Datasheet

Pressure Switches Datasheet

Datasheet
