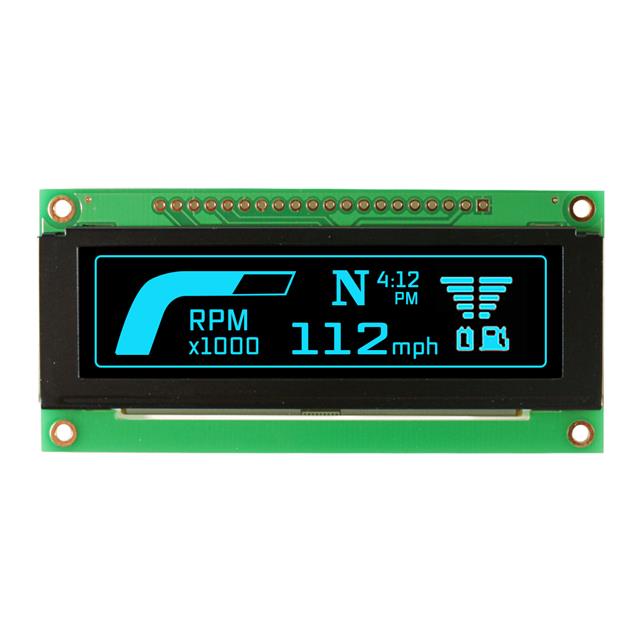

NHD-2.8-25664UCB2

Active

Newhaven Display Intl

LCD OLED GRAPHIC 256 X 64 BLUE

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD OLED GRAPHIC 256 X 64 BLUE

Technical Specifications

Parameters and characteristics for this part

Part	Interface	Background Color	Graphics Color	Dot Pixels [y]	Dot Pixels [x]	Display Type	Backlight	Dot Size [y]	Dot Size [x]	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [z]	Viewing Area [y]	Controller Type	Dot Pitch [x]	Dot Pitch [y]	Display Mode	Touchscreen	Dot Pixels
Newhaven Display Intl NHD-2.8-25664UCB2	Parallel/Serial	Black	Blue	64	256	OLED - Passive Matrix	Without Backlight	0.25 mm	0.25 mm	2.8 in	71.12 mm	20 mm	72 mm	SSD1322	0.27 mm	0.27 mm
Newhaven Display Intl NHD-2.8-240320AF-CSXP-F	16-Bit 8-Bit Parallel		Blue Green Red	320	240 pixels	TFT - Color IPS (In-Plane Switching)	LED - White			2.8 in	71.12 mm			ST7789VI			Transmissive
Newhaven Display Intl NHD-2.8-25664UMB3	8-Bit Parallel SPI	Black	Blue	64	256	OLED - Passive Matrix	Without Backlight			2.8 in	71.12 mm	20 mm	72 mm	SSD1322
Newhaven Display Intl NHD-2.8-240320AF-CSXP-FT	16-Bit 8-Bit Parallel		Blue Green Red	320	240 pixels	TFT - Color IPS (In-Plane Switching)	LED - White			2.8 in	71.12 mm			ST7789VI			Transmissive	Resistive
Newhaven Display Intl NHD-2.8-240320AF-CSXP-FCTP	16-Bit 8-Bit Parallel		Blue Green Red	240 pixels	320 pixels	TFT - Color IPS (In-Plane Switching)	LED - White			2.8 in	71.12 mm			ST7789VI			Transmissive	Capacitive	QVGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Blue OLED - Passive Matrix Parallel/Serial 2.8" (71.12mm) 256 x 64
