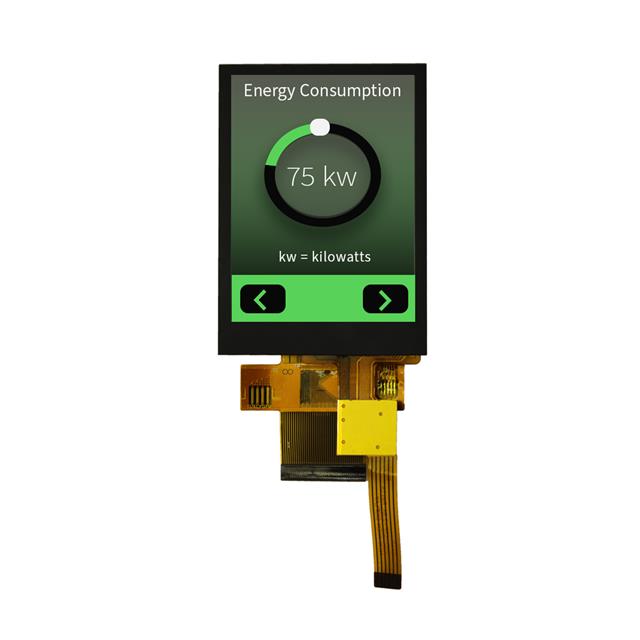

NHD-2.8-240320AF-CSXP-FCTP

Active

Newhaven Display Intl

2.8" IPS TFT WITH CAP TOUCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NHD-2.8-240320AF-CSXP-FCTP

Active

Newhaven Display Intl

2.8" IPS TFT WITH CAP TOUCH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-2.8-240320AF-CSXP-FCTP

Backlight	LED - White
Controller Type	ST7789VI
Diagonal Screen Size	2.8 in
Diagonal Screen Size	71.12 mm
Display Mode	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)
Dot Pixels	QVGA
Dot Pixels [x]	320 pixels
Dot Pixels [y]	240 pixels
Graphics Color	Green, Red, Blue
Interface	8-Bit, Parallel, 16-Bit
Touchscreen	Capacitive

NHD-2.8 Series

Part	Interface	Background Color	Graphics Color	Dot Pixels [y]	Dot Pixels [x]	Display Type	Backlight	Dot Size [y]	Dot Size [x]	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [z]	Viewing Area [y]	Controller Type	Dot Pitch [x]	Dot Pitch [y]	Display Mode	Touchscreen	Dot Pixels
Newhaven Display Intl NHD-2.8-25664UCB2	Parallel/Serial	Black	Blue	64	256	OLED - Passive Matrix	Without Backlight	0.25 mm	0.25 mm	2.8 in	71.12 mm	20 mm	72 mm	SSD1322	0.27 mm	0.27 mm
Newhaven Display Intl NHD-2.8-240320AF-CSXP-F	16-Bit 8-Bit Parallel		Blue Green Red	320	240 pixels	TFT - Color IPS (In-Plane Switching)	LED - White			2.8 in	71.12 mm			ST7789VI			Transmissive
Newhaven Display Intl NHD-2.8-25664UMB3	8-Bit Parallel SPI	Black	Blue	64	256	OLED - Passive Matrix	Without Backlight			2.8 in	71.12 mm	20 mm	72 mm	SSD1322
Newhaven Display Intl NHD-2.8-240320AF-CSXP-FT	16-Bit 8-Bit Parallel		Blue Green Red	320	240 pixels	TFT - Color IPS (In-Plane Switching)	LED - White			2.8 in	71.12 mm			ST7789VI			Transmissive	Resistive
Newhaven Display Intl NHD-2.8-240320AF-CSXP-FCTP	16-Bit 8-Bit Parallel		Blue Green Red	240 pixels	320 pixels	TFT - Color IPS (In-Plane Switching)	LED - White			2.8 in	71.12 mm			ST7789VI			Transmissive	Capacitive	QVGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 53.56
		5	$ 50.35
		10	$ 47.63

Description

General part information

NHD-2.8 Series

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) Parallel, 8-Bit/16-Bit (RGB) 2.8" (71.12mm) 320 x 240 (QVGA)
