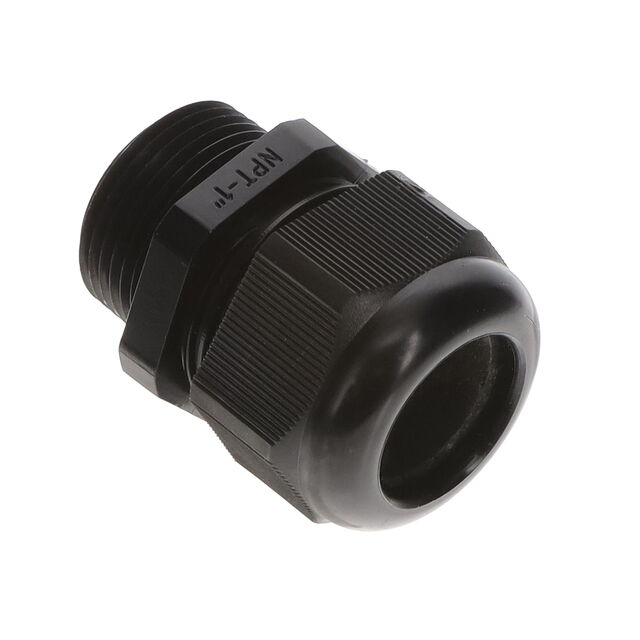

CABLE GLAND 19-25MM 1" NPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
50.110 PA/SW
ActiveJacob GmbH
CABLE GLAND 19-25MM 1" NPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 50.110 PA/SW |
|---|---|
| Color | Black |
| Includes | Sealing Ring |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Outside Cable Diameter (Max) | 25 mm |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.984 in |
| Outside Cable Diameter (Min) [Min] [diameter] | 19 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.748 in |
| Thread Length | 0.709 in |
| Thread Length | 18.01 mm |
| Thread Size | 1" NPT |
| Type | Cable Gland |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.25 | |
| 10 | $ 2.95 | |||
| 25 | $ 2.79 | |||
| 50 | $ 2.73 | |||
| 100 | $ 2.60 | |||
| 250 | $ 2.27 | |||
| 500 | $ 2.21 | |||
| 1000 | $ 1.88 | |||
| 2500 | $ 1.75 | |||
Description
General part information
50.110 Series
Cable Gland Polyamide (PA6), Nylon 6 1" NPT Black
