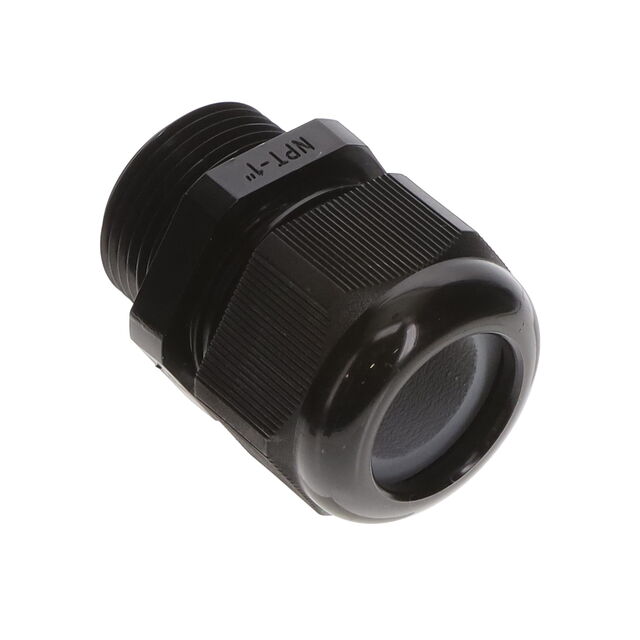

50.110 PA/RSW
ActiveJacob GmbH
CABLE GLAND 12-20MM 1" NPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
50.110 PA/RSW
ActiveJacob GmbH
CABLE GLAND 12-20MM 1" NPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 50.110 PA/RSW |
|---|---|
| Color | Black |
| Includes | Sealing Ring |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.787 " |
| Outside Cable Diameter (Max) [Max] [diameter] | 20 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 12 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.472 in |
| Thread Length | 0.709 in |
| Thread Length | 18.01 mm |
| Thread Size | 1" NPT |
| Type | Cable Gland |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.68 | |
| 10 | $ 3.34 | |||
| 25 | $ 3.17 | |||
| 50 | $ 3.09 | |||
| 100 | $ 2.94 | |||
| 250 | $ 2.58 | |||
| 500 | $ 2.50 | |||
| 1000 | $ 2.14 | |||
| 2500 | $ 1.99 | |||
Description
General part information
50.110 Series
Cable Gland Polyamide (PA6), Nylon 6 1" NPT Black
Documents
Technical documentation and resources
