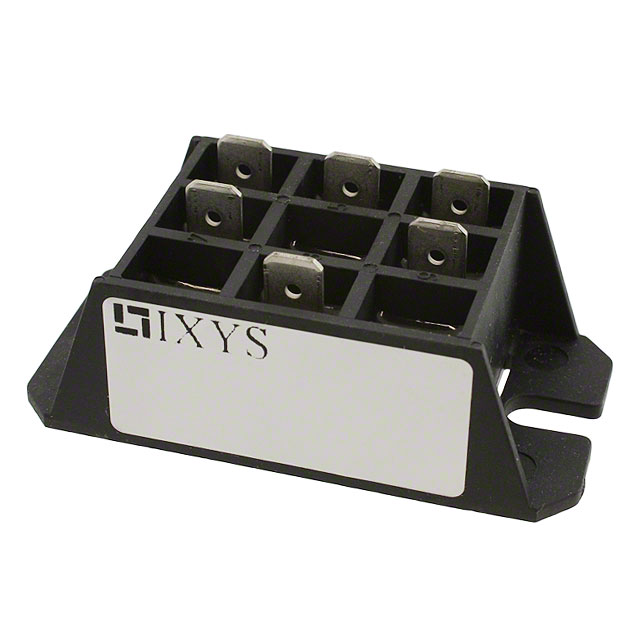

VHF28-16IO5

Obsolete

IXYS

BRIDGE RECT SGL PHASE 1600V 32A

Search across all available documentation for this part.

Obsolete

IXYS

BRIDGE RECT SGL PHASE 1600V 32A

Technical Specifications

Parameters and characteristics for this part

Specification	VHF28-16IO5

Current - Gate Trigger (Igt) (Max) [Max]	65 mA
Current - Hold (Ih) (Max) [Max]	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	300 A, 330 A
Current - On State (It (AV)) (Max) [Max]	28 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes [custom]	2
Number of SCRs, Diodes [custom]	2
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	X118
Structure	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V
Voltage - Off State	1.6 kV

Part	Current - Hold (Ih) (Max) [Max]	Structure	Operating Temperature [Min]	Operating Temperature [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Off State	Package / Case	Number of SCRs, Diodes [custom]	Number of SCRs, Diodes [custom]	Mounting Type	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]
IXYS VHF28-16IO5	100 mA	Bridge Single Phase - SCRs/Diodes (Layout 1)	-40 °C	125 ¯C	300 A 330 A	1.6 kV	X118	2	2	Chassis Mount	65 mA	1 V	28 A
IXYS VHF28-14IO5	100 mA	Bridge Single Phase - SCRs/Diodes (Layout 1)	-40 °C	125 ¯C	300 A 330 A	1.4 kV	FO-F-A	2	2	Chassis Mount	65 mA	1 V	28 A
IXYS VHF28-12IO5	100 mA	Bridge Single Phase - SCRs/Diodes (Layout 1)	-40 °C	125 ¯C	300 A 330 A	1.2 kV	FO-F-A	2	2	Chassis Mount	65 mA	1 V	28 A
IXYS VHF28-08IO5	100 mA	Bridge Single Phase - SCRs/Diodes (Layout 1)	-40 °C	125 ¯C	300 A 330 A	800 V	FO-F-A	2	2	Chassis Mount	65 mA	1 V	28 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR Module 1.6 kV Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount X118
