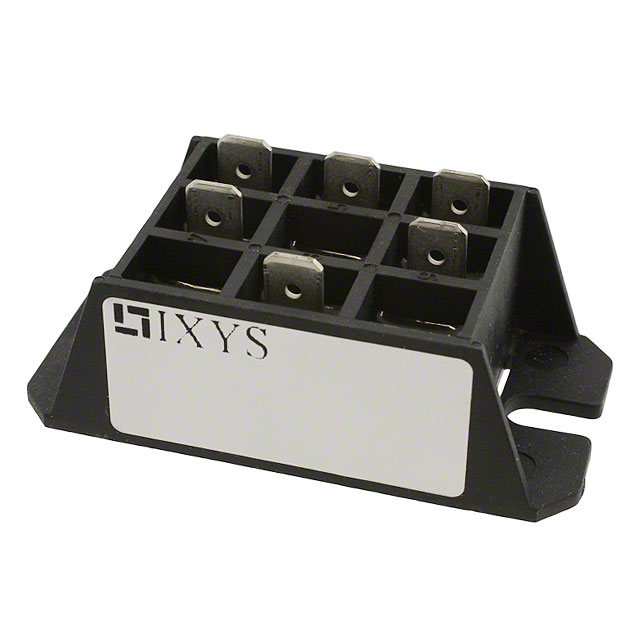

VHF28-08IO5

Obsolete

IXYS

RECT BRIDGE 1PH 800V FO-F-A

Search across all available documentation for this part.

Obsolete

IXYS

RECT BRIDGE 1PH 800V FO-F-A

Technical Specifications

Parameters and characteristics for this part

Specification	VHF28-08IO5

Current - Gate Trigger (Igt) (Max) [Max]	65 mA
Current - Hold (Ih) (Max) [Max]	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	300 A, 330 A
Current - On State (It (AV)) (Max) [Max]	28 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes [custom]	2
Number of SCRs, Diodes [custom]	2
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	FO-F-A
Structure	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V
Voltage - Off State	800 V

Part	Current - Hold (Ih) (Max) [Max]	Structure	Operating Temperature [Min]	Operating Temperature [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Off State	Package / Case	Number of SCRs, Diodes [custom]	Number of SCRs, Diodes [custom]	Mounting Type	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]
IXYS VHF28-16IO5	100 mA	Bridge Single Phase - SCRs/Diodes (Layout 1)	-40 °C	125 ¯C	300 A 330 A	1.6 kV	X118	2	2	Chassis Mount	65 mA	1 V	28 A
IXYS VHF28-14IO5	100 mA	Bridge Single Phase - SCRs/Diodes (Layout 1)	-40 °C	125 ¯C	300 A 330 A	1.4 kV	FO-F-A	2	2	Chassis Mount	65 mA	1 V	28 A
IXYS VHF28-12IO5	100 mA	Bridge Single Phase - SCRs/Diodes (Layout 1)	-40 °C	125 ¯C	300 A 330 A	1.2 kV	FO-F-A	2	2	Chassis Mount	65 mA	1 V	28 A
IXYS VHF28-08IO5	100 mA	Bridge Single Phase - SCRs/Diodes (Layout 1)	-40 °C	125 ¯C	300 A 330 A	800 V	FO-F-A	2	2	Chassis Mount	65 mA	1 V	28 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR Module 800 V Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount FO-F-A
